(3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0180000

Запчасти Case IH 2166 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0180000 (02) - FUEL SYSTEM

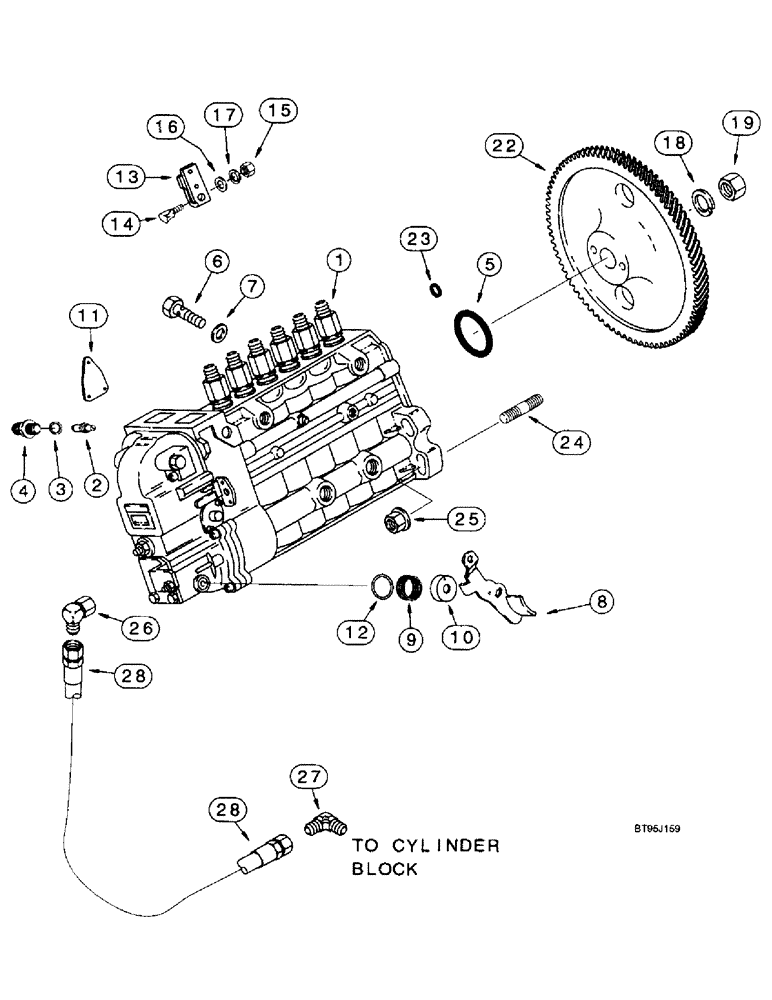

Схема запчастей Case IH 2166 - (3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0180000 (02) - FUEL SYSTEM
7
28
28
23
1
19
3
17
24
11
26
10
13
18
9
8
25
12
2
5
16
14
4
15
27
22
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J923480

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

1

JR923480

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

JC923480

CORE-INJECTION PUMP

Return Number

1шт.

1

JC913339

CORE

Return Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, (Replaces washer 933222R1) M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

LEVER - pump shutoff

1шт.

9

J912890

SPRING

SPRING - lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

GASKET - mounting

1шт.

12

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special, shut-off shaft

1шт.

13

1808728C1

LEVER

LEVER - throttle control

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

15

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

18

A77775

LOCK WASHER

WASHER - lock

1шт.

19

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

22

J912614

GEAR

GEAR - fuel pump

1шт.

23

J916284

O-RING

O-RING - sealing, fuel injection pump

1шт.

24

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

25

J902662

FLANGE NUT

NUT - hex flange, 10 mm, fuel pump to timing gear housing

4шт.

26

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

ELBOW, 90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

27

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT, pump lubrication

1шт.

28

J906747

HOSE,6.35mm ID x 508mm L

Lubrication

1шт.
