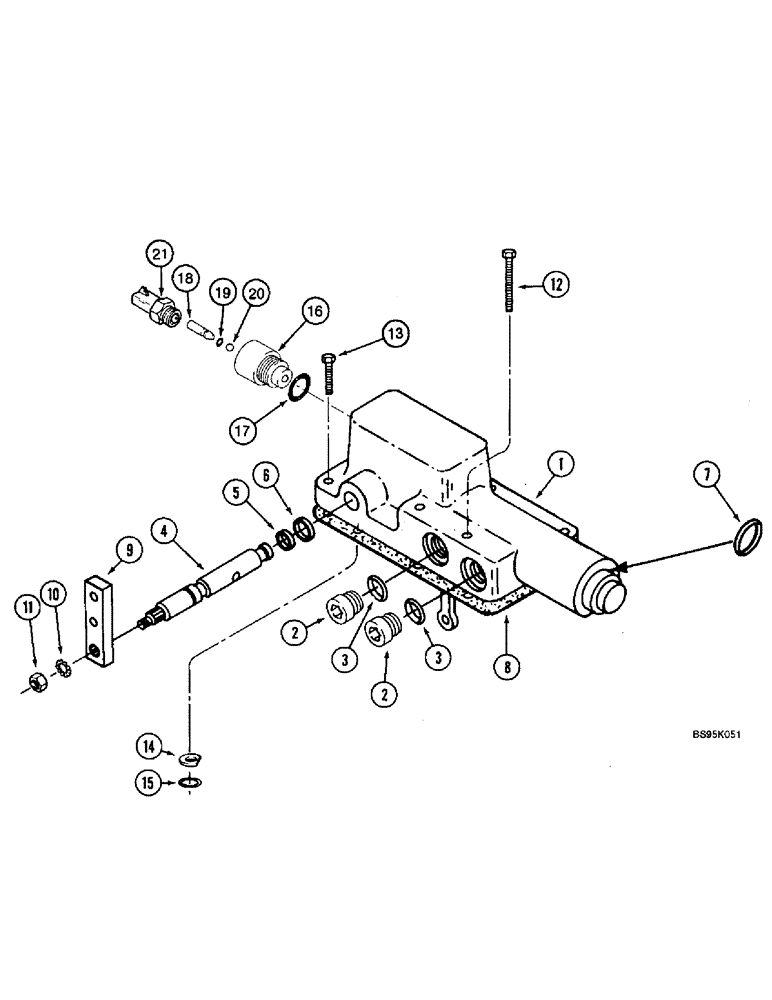

Запчасти Case IH 2166 (6-24) - HYDROSTATIC PUMP ASSEMBLY, CONTROL VALVE (03) - POWER TRAIN

191065A1

CONTROL VALVE

VALVE ASSEMBLY - control, pump, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 191065A1

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 3 Hex Soc, 9/16"-18 ORB

2шт.

1978048C2

SHAFT

ASSEMBLY - valve, Includes: Ref. 4 - 6

1шт.

Ref 4, 1978048c2 advances to 1978048c3. The C3 version also includes the control shaft set screw that is not shown on this page. Set screw goes in underneath the valve body. 8/22/02 BW CAM.

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - control valve, order shaft assembly 1978048C2

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft, order shaft assembly 1978048C2

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Not included with valve assembly, also order instruction sheet 1095523R1

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

REF

INSTRUCTION

LEVER - pump control, not used in this application

1шт.

See Figure 6-16, Ref. 20 for correct pump control lever.

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

14

1272750C1

ORIFICE

- 0.057 inch

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

197909A1

ADAPTER

ASSEMBLY - special, valve to switch, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - special, valve to switch, order adapter assembly 197909A1

1шт.

17

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

Adapter to valve -008, 90 Duro, .176" ID x .070" Thk

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - neutral start, order adapter assembly 197909A1

1шт.

19

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk

1шт.

20

NSS

NOT SOLD SEPARAT

BALL - neutral start, order adapter assembly 197909A1

1шт.

21

197514A1

SENSOR

SWITCH - neutral start, ball type

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
