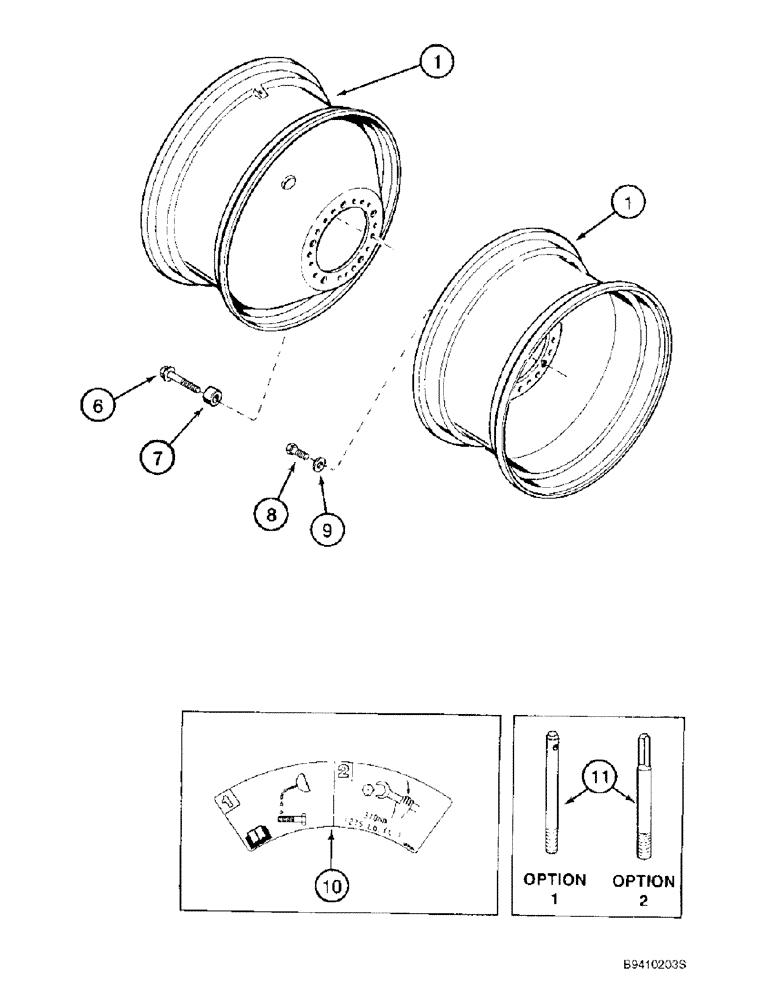

Запчасти Case IH 2188 (6-70) - DRIVE WHEELS, DUAL (03) - POWER TRAIN

1

184352C2

WHEEL

- drive, dual, 18.4 x 38 inch tire

4шт.

1

184458C2

WHEEL

- drive, dual, 18.4 x 42 inch tire

4шт.

1

129948A1

WHEEL

- drive, one piece, 20.8-38 14 PR tire, dual

4шт.

1

184456C2

WHEEL

- drive, dual, 20.8 x 42 inch tire

4шт.

2

417194C1

PLUG

- valve hole , used with tubeless tires, not shown

4шт.

2

383697R1

PLUG

- valve hole, used with tube type tires, not shown

4шт.

4

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter, used with tubeless tires, not shown

4шт.

5

407184R1

VALVE

- inflation, used with tubeless tires, not shown

1шт.

6

130934A1

FLANGE BOLT,Hex, M20 x 1.5 x 90mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 90 mm, class 10.9, wheel mounting

30шт.

7

130871A2

SPACER

- wheel mounting bolt

30шт.

8

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

- hex, 20 - 1.5 x 45 mm, class 10.9, inner dual wheel mounting

10шт.

9

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

10шт.

10

135786A2

DECAL

- dual wheel bolt torque instructions

2шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

BOLT - special, drive wheel starter, wheel mounting

2шт.
