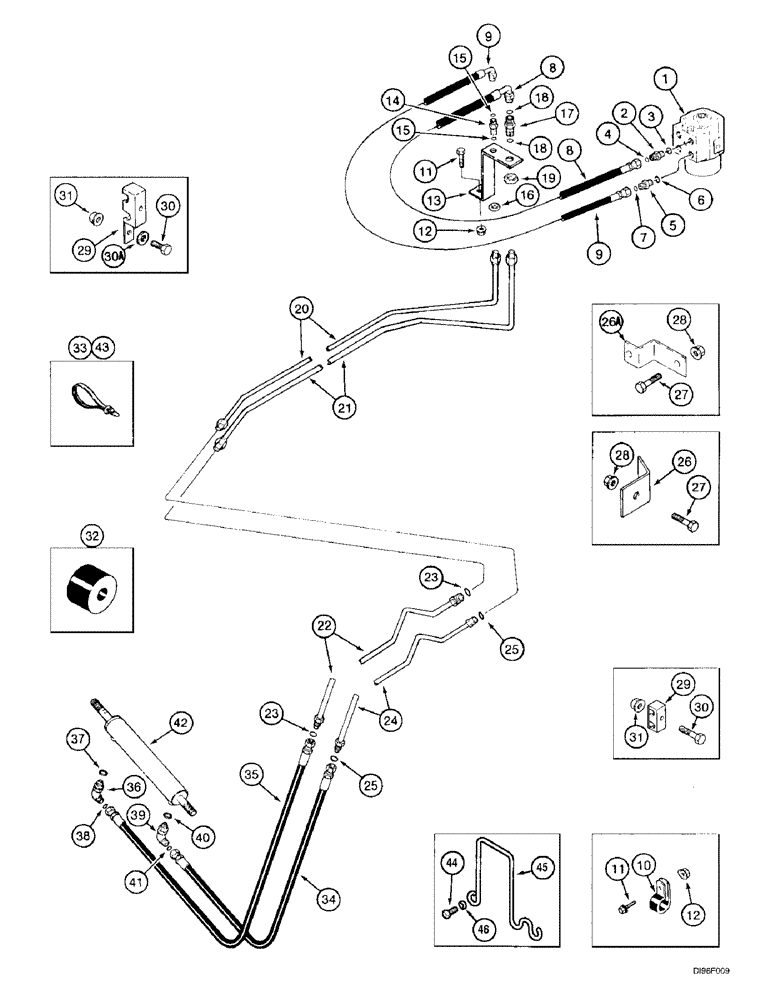

Запчасти Case IH 2188 (5-06) - POWER STEERING SYSTEM, PUMP TO CYLINDER SYSTEM (04) - STEERING

1

123274A1

O-RING KIT

ASSEMBLY - steering, hand, parts list Figure 5-8

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 13/16-16 face seal x 3/4-16 inch O-ring boss, Includes Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

- straight, special, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 6 and 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

128017A2

FLEXIBLE HOSE

HOSE, FLEXIBLE - 105" (2670 mm) long

1шт.

9

128019A2

FLEXIBLE HOSE

HOSE, FLEXIBLE - 105" (2670 mm) long

1шт.

10

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

13

128539A1

SUPPORT

BRACKET - support, hydraulic line, bulkhead type

1шт.

14

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal, Includes: Ref. 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

17

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

CONNECTOR, HYD, , Includes Ref. 18 13/16"-16, Blkhd, ORFS

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

20

128571A1

TUBE,0.375" OD, 1911,264 mm Length

- hand pump to cylinder, 3/8 inch, front

1шт.

21

128572A1

TUBE,0.5" OD, 1696,984 mm Length

- hand pump to cylinder, 1/2 inch, front

1шт.

22

135941A1

HYD TUBE,0.375" Diameter, 802, 99 mm Length

TUBE - hydraulic, steering, rear

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

135942A1

HYD TUBE,0.5" Diameter, 769, 687 mm Length

TUBE - hydraulic, steering, rear

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

178960C1

BRACKET

SUPPORT - tube clamp

1шт.

26a

196517C1

SUPPORT TUBE

SUPPORT - fuel tubes, tube clamp

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

29

183825C1

CLAMP

- tube

3-4шт.

30a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3-4шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3-4шт.

32

167955C2

SEAL

GROMMET - steering cylinder hose

2шт.

33

702093C1

CABLE TIE

STRAP - tie, steering cylinder hose

2шт.

34

128083A1

HOSE

- 68 inch (1727 mm) long, use with 92 to 120 inch axle

1шт.

34

128084A1

HOSE

- 77 inch (1956 mm) long, use with Power Guide Axles

1шт.

35

128088A1

HOSE

- 77 inch (1956 mm) long, use with 92 to 120 inch axle

1шт.

35

128091A1

HOSE

- 85 inch (2160 mm) long, use with Power Guide Axles

1шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 37 and 38

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss, Incl Ref 40 and 41

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

1958024C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-1/2 (64) ID x 9 inch (229 mm) stroke, parts list Figure 5-36

1шт.

87337226R

REMAN-HYD CYLINDER

2188 ( 1/95 - 12/97 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

43

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

44

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

45

232707A1

GUIDE

- steering hoses

1шт.

46

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

30

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3-4шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
