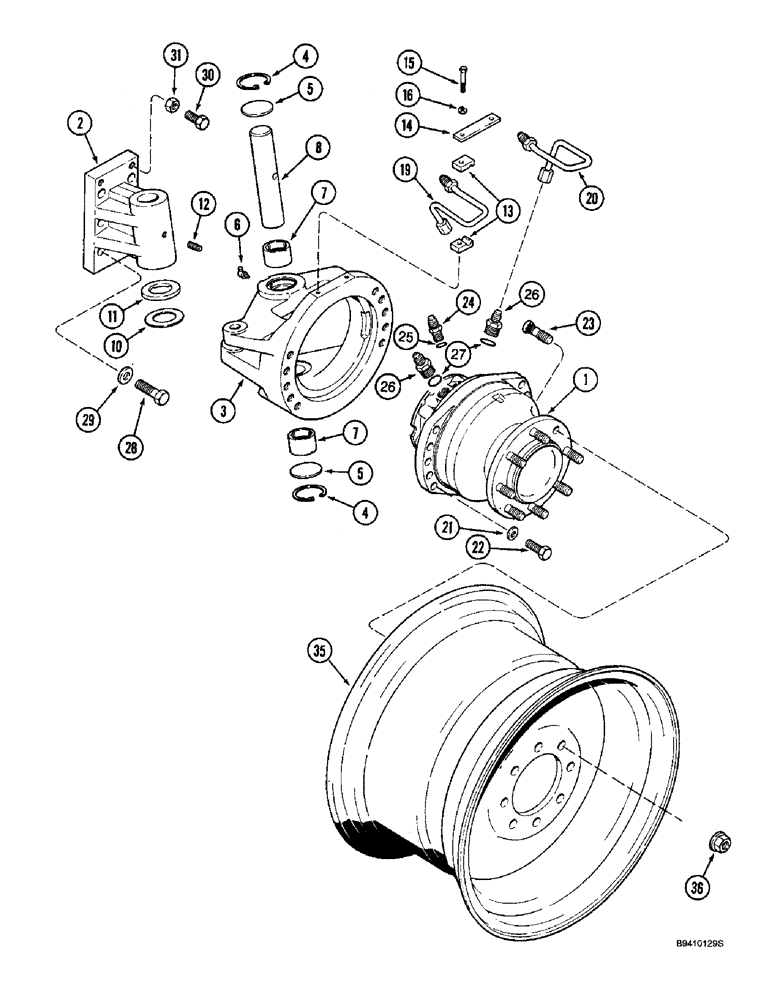

Запчасти Case IH 2188 (5-30) - WHEEL MOTOR AND KING PIN, POWER GUIDE AXLE AND AXLE DRIVE WHEEL (04) - STEERING

1

121436A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, wheel, corn and grain, parts list Figure 5-42

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2188 - CASE IH AXIAL-FLOW COMBINE - 1/95-12/97, Reman For New P/N's 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

121437A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, wheel, rice, parts list Figure 5-44

2шт.

2

1970138C1

HOUSING

- king pin

2шт.

3

1970136C1

HOUSING

CARRIER - wheel motor, right-hand, corn and grain, shown

1шт.

3

1347195C1

FRAME

CARRIER - wheel motor, right-hand, rice

1шт.

3

1970354C1

FRAME

CARRIER - Wheel Motor, LH, Corn and grain

1шт.

3

1347196C1

FRAME

CARRIER - Wheel Motor, LH, Rice

1шт.

4

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

4шт.

5

41-3040

PLUG,Exp, 2 1/2"

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

4шт.

7

1970142C1

BUSHING

- pivot

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

- king

2шт.

10

1970381C1

THRUST WASHER

- thrust, steel

2шт.

11

1970382C1

THRUST WASHER

- thrust, bronze

2шт.

12

83-15020

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

SCREW - set, hex socket headless, 1/2 NC x 1-1/4 inch, cup point

2шт.

13

1970148C1

CLAMP

- hydraulic, tube

8шт.

14

1970150C1

PLATE

- clamp

2шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

1347179C1

TUBE

- pressure, right-hand rear, left-hand front, corn and grain

2шт.

19

1970146C1

HYD TUBE

TUBE - pressure, right-hand rear, left-hand front, rice

2шт.

20

1970147C1

HYD TUBE

TUBE - pressure, left-hand rear, right-hand front, rice

2шт.

20

1347180C1

TUBE

- pressure, left-hand rear, right-hand front, corn and grain

2шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, corn and grain

20шт.

21

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened, rice

16шт.

22

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8, Corn and grain

20шт.

22

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8, rice

16шт.

23

1970151C1

STUD

- mounting, included with ref 1 motor

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 27

4шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

35

1970153C1

RIM

WHEEL - drive, steering (for 16.9 x 26 or 18.4 x 26 tire) eight mounting holes, axle drive wheel

2шт.

35a

1979866C1

WHEEL

- drive, steering (for 18.4 x 26 tire) 10 mounting holes, not shown, axle drive wheel

2шт.

35a

220201A1

WHEEL ASSY

WHEEL, ASSY, Drive, steering, DW16 x 30 (for 18.6 x 30 tire) 10 mounting holes, Not shown, Axle drive wheel

2шт.

36

1541701C1

FLANGE NUT

- hex flange, special, wheel mounting, axle drive wheel

1шт.
