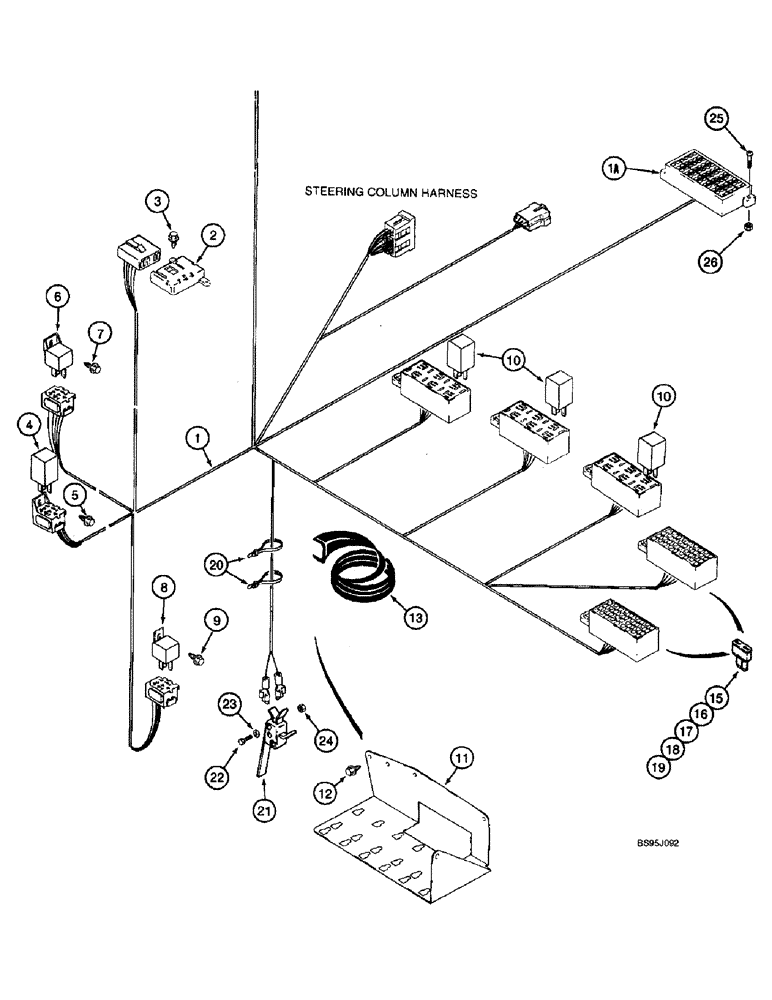

Запчасти Case IH 2188 (4-20) - CAB HARNESS, TO PEDESTAL, RELAY AND FUSE BLOCK, PRIOR TO COMBINE P.I.N. JJC0191483 (06) - ELECTRICAL

1

184513A3

HARNESS

ASSEMBLY - cab, Includes Ref. 1A - 2A on Figure 4-16, Ref. 2 and 3 on Figure 4-18 and Ref. 1A on this Figure

1шт.

1a

122845A1

JUNCTION BLOCK

MODULE - feedback

1шт.

2

A162294

CONNECTOR, ELEC

MODULE - low coolant

1шт.

4

92389C2

FLASHER UNIT

FLASHER - hazard

1шт.

6

1987452C1

RELAY

- 12 volt, 70 amp

1шт.

8

1502351C1

RELAY

- 12 volt, dipping

1шт.

10

105849A1

RELAY

- continuous duty, 20 amp

19шт.

11

123116A1

PANEL

BRACKET - support, fuse and relay

1шт.

13

70-5848T1

SEAL

TRIM - edge, 5-1/2 inch (140 mm) long, cut from bulk trim F64277X below

2шт.

14

177346A4

DECAL

- lower fuse and relay, English, not shown, for illustration and French and Spanish part numbers see Figure 9H-40, Ref. 2

1шт.

15

121850A1

FUSE,3A, Mini, Violet

- mini, 3 ampere

1шт.

Part of P/N 222699A1 Kit

1шт.

16

121412A1

FUSE,10A, Mini, Red

1шт.

Part of P/N 222699A1 Kit

1шт.

17

121413A1

FUSE,15A, Mini, Blue

1шт.

Part of P/N 222699A1 Kit

1шт.

18

121414A1

FUSE,20A, Mini, Yellow

- mini, 20 ampere

1шт.

Part of P/N 222699A1 Kit

1шт.

19

121416A1

FUSE,30A, Mini, Green

- mini, 30 ampere

1шт.

Part of P/N 222699A1 Kit

1шт.

20

702093C1

CABLE TIE

STRAP - tie, 3rd gear lockout switch wire

2шт.

21

60-6515T1

SWITCH

- 3rd gear lockout

1шт.

22

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

- machine, hex head, No. 4 NC x 3/4 inch

2шт.

23

495-31012

WASHER,#4

- flat, 1/8 x 5/16 x 1/32 inch

2шт.

24

225-14104

NUT,#4-40

2шт.

25

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

26

231-14106

NUT,#6-32, GB

NUT - hex, self-locking, No. 6 NC

2шт.

222699A1

FUSE KIT

KIT - fuse, includes Refs. 15-19

1шт.

139716A1

5 amp, If looking for the new fuses instead of Refs. 15-19

1шт.

139717A1

8 amp, If looking for the new fuses instead of Refs. 15-19

1шт.

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

CIRCUIT BREAKER, , If looking for the new fuses instead of Refs. 15-19 10 Amp, Mini

1шт.

139719A1

CIRCUIT BREAKER,15 Amp, Mini

If looking for the new fuses instead of Refs. 15-19 15 Amp, Mini

1шт.

139720A1

CIRCUIT-BREAKER,20 Amp, Mini

CIRCUIT BREAKER, 20 Amp, If looking for the new fuses instead of Refs. 15-19

1шт.

139721A1

CIRCUIT-BREAKER,25 Amp, Mini

CIRCUIT BREAKER, , If looking for the new fuses instead of Refs. 15-19 25 Amp, Mini

1шт.

3

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

5

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

1шт.

7

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

1шт.

9

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

1шт.

12

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

3шт.
