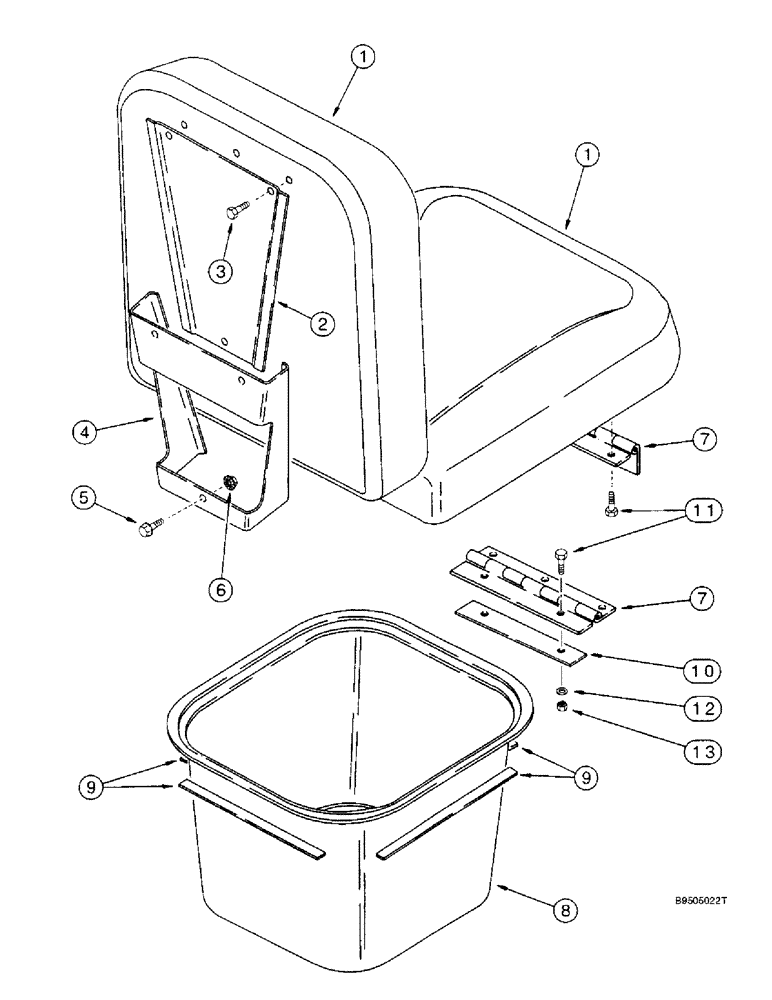

Запчасти Case IH 2188 (9G-18) - BUDDY SEAT AND STORAGE TRAY (10) - CAB & AIR CONDITIONING

1

117418A2

CUSHION

- buddy seat

2шт.

2

119890A1

SUPPORT

BRACKET - seat

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

4

119891A1

SUPPORT

MOUNT - seat

1шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

7

121062A1

HINGE

- buddy seat

1шт.

8

119308A2

TRAY

- storage

1шт.

9

187783C1

SEALING STRIP

FOAM - adhesive backed, 11-13/16 inch (300 mm) long, cut from 195917C2 bulk foam below

4шт.

10

120568A1

PLATE

- hinge reinforcement, mounted under left-hand pedestal cover

1шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

5шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

195917C2

SEAL

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

5

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

3шт.
