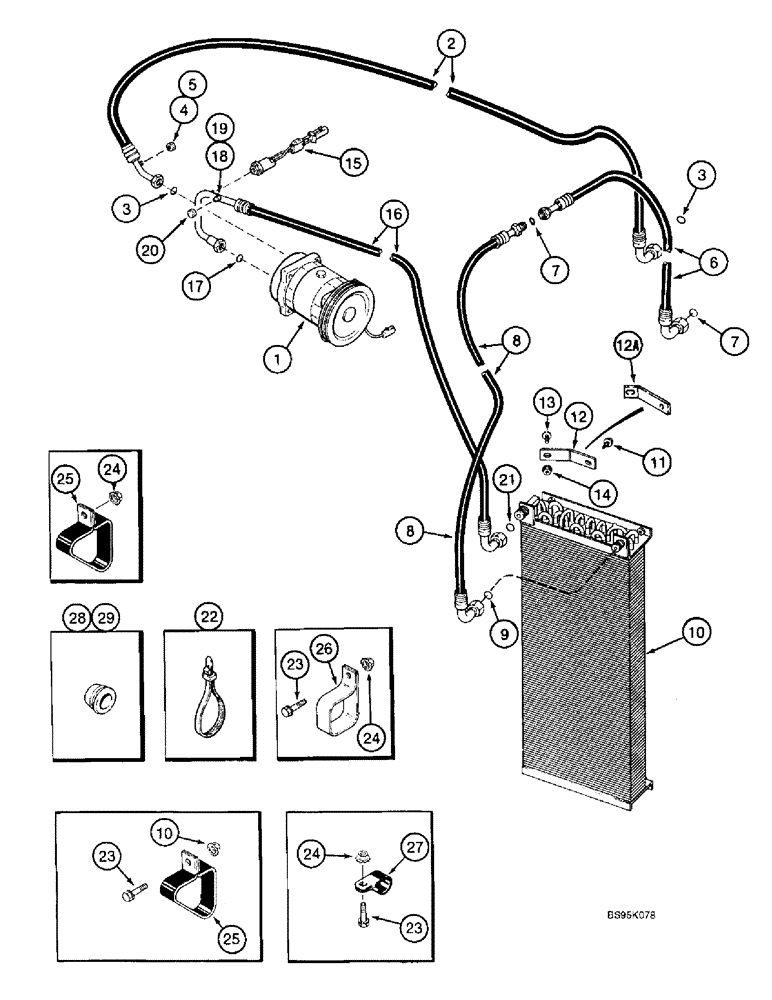

Запчасти Case IH 2188 (9G-50) - HEATING AND AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND CAB, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, see Figure 9G-52 for parts list and mounting

1шт.

1

86993462R

REMAN-COMPRESSOR

2188 (1/95-12/97), Reman for New P/N 1999755C2

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

1999755C2C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

2

119749A1

HOSE

ASSEMBLY - compressor to cab suction, 201-3/16 inch (5109 mm) long, Includes: Ref. 3 - 5

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

2шт.

4

1250594C1

CORE

VALVE - core

1шт.

5

122553A1

CAP

- sealing

1шт.

6

119750A1

HOSE

ASSEMBLY - condenser to cab, at cab, 195-11/16 inch (4970 mm) long, Includes: Ref. 7

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

2шт.

8

98045C3

HOSE

ASSEMBLY - condenser to cab, at condenser, 61-7/16 inch (1560 mm) long, Includes: Ref. 9

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

10

84581C2

CONDENSER

- air conditioning

1шт.

11

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, , Condenser Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

12

1324915C2

SUPPORT

BRACKET - condenser support, prior to P.I.N. JJC0191483

2шт.

12a

197432A1

SUPPORT

BRACKET - condenser support, P.I.N. JJC0191483 and after

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", Bracket mounting

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

1999925C1

INDICATOR

SWITCH - high pressure

1шт.

16

122435A1

HOSE

ASSEMBLY - compressor to condenser, 65 inch (1650 mm) long, Includes: Ref. 17 - 21

1шт.

17

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

18

1250594C1

CORE

VALVE - core

2шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

20

122554A1

CAP

- sealing

1шт.

21

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

22

702093C1

CABLE TIE

STRAP - tie, short

1шт.

22

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

25

1994983C2

CLAMP

- hose, left-hand side of grain tank and under side of service cat walk above unloader rear auger

3шт.

26

1301387C2

CLIP

CLAMP - square, 2 inch ID

5шт.

27

154695C2

CLAMP

- hose

1шт.

28

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, used with hose 98045C3, Ref. 8

1шт.

29

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID, used with hose 122435A1, Ref. 16

1шт.
