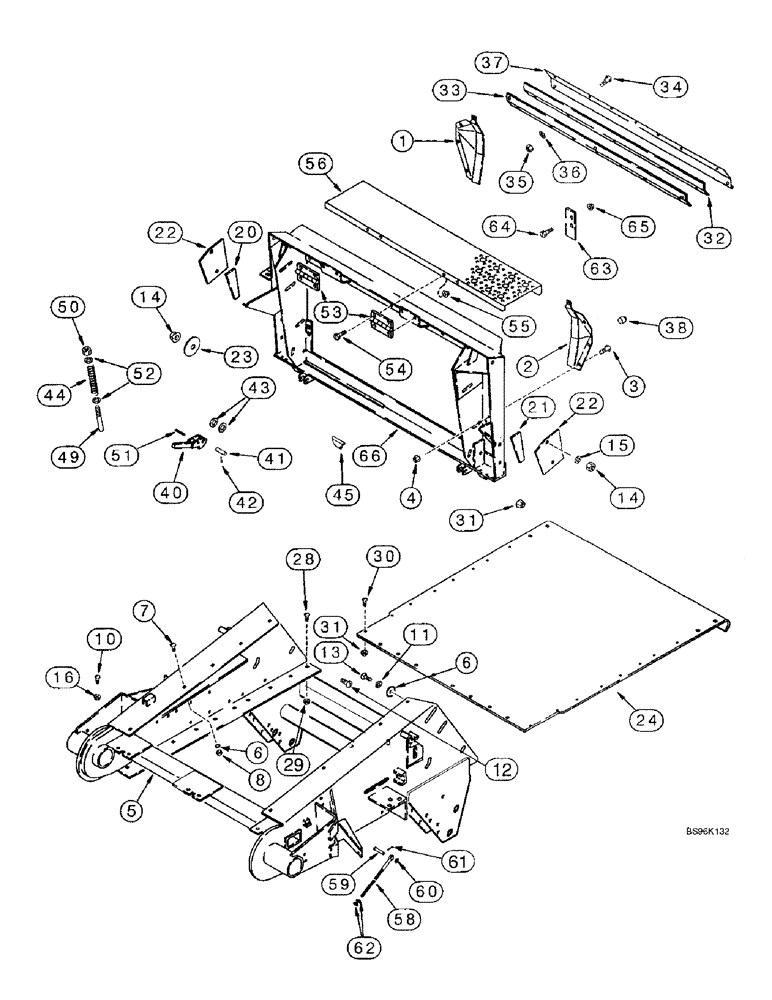

Запчасти Case IH 2188 (9A-30) - FEEDER, HOUSING AND ADAPTER (13) - FEEDER

1

184853C1

DEFLECTOR

- front, left-hand

1шт.

2

184854C1

DEFLECTOR

- front, right-hand

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

5

120875A4

HOUSING

- feeder, includes decal, 54-1/2 inch feeder, used on models with 3 strand conveyer chain, prior to combine P.I.N. JJC0193725

1шт.

This part should be removed from catalog. (It is no longer used). Dealer must order either 239802A2 or 239803A2 depending on what size feeder he has.

1шт.

5

120876A4

HOUSING

- feeder, includes decal, 60 inch feeder, used on models with 3 strand conveyer chain, prior to combine P.I.N. JJC0193725

1шт.

This part should be removed from catalog. (It is no longer used). Dealer must order either 239802A2 or 239803A2 depending on what size feeder he has.

1шт.

The 3 inner stripper plates (the plates close to the Ref. 5 designation on the picture) are part No. 185817C3. (Found on P/N 1989357C4)

1шт.

5

239802A2

HOUSING

- feeder, includes decal, 54-1/2 inch feeder, combine P.I.N. JJC0193725 and after

1шт.

5

239803A2

HOUSING

- feeder, includes decal, 60 inch feeder, combine P.I.N. JJC0193725 and after

1шт.

6

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

4шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

11

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

6шт.

12

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

2шт.

13

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

4шт.

14

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

3шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

17

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, not shown

6шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, not shown

4шт.

20

1327752C1

FOAM INSULATION

- side, left-hand

1шт.

21

1327753C1

FOAM INSULATION

- side, right-hand

1шт.

22

1327737C2

PLATE

COVER - side

2шт.

23

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

24

1324572C1

PANEL

PLATE - lower, should be 49.3" x 44.8"

1шт.

This feeder housing plate fits a 54-1/2" bottom

1шт.

24

1324574C2

PANEL

PLATE - lower, 44-1/4" wide x 51-1/2"

1шт.

This feeder housing plate fits a 60" bottom

1шт.

24

1345455C1

PANEL

PLATE - lower, perforated, 54-1/2 inch feeder

1шт.

24

118846A1

BOTTOM

PLATE - lower, perforated, 60 inch feeder

1шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

4шт.

29

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

4шт.

31

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6-8шт.

32

109254A1

PLATE

STRIP - feeder drum

1шт.

33

1319473C1

COVER

- feeder, upper, 3 plys of 28 oz. cotton material, rubber coated. The overall length is 45.28". It has 12 total holes .4055" diameter.

1шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

35

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

5шт.

35

231-5345

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

7шт.

36

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

5шт.

36

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

7шт.

37

1319475C1

COVER

- adapter

1шт.

40

179024C1

HINGE

HANDLE - lock

2шт.

41

177141C1

PIN,15.88mm OD x 41mm L

- pivot

2шт.

42

138-2005

PIN,1/4" x 1", Coiled

2шт.

43

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

44

367833R1

SPRING

- rod

2шт.

45

1338021C1

PIN,7.94mm OD

- retaining

2шт.

49

177138C1

ROD

- latch

2шт.

50

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

51

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, 1/8" x 1", Slotted

2шт.

52

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

53

140767A1

HINGE

- step

2шт.

54

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

56

140768A3

STEP

- header beam

1шт.

58

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYEBOLT - adjusting

2шт.

59

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch

2шт.

60

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

61

432-1216

COTTER PIN,3/16" x 1"

2шт.

62

329-108

NUT,1/2"-13, G8

4шт.

63

181646C1

SUPPORT

PLATE - face wear

2шт.

64

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

65

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

66

140764A2

ADAPTER

- feeder

1шт.

67

126046A1

GASKET,287.02mm L

TRIM - edge, black, 11-1/2 inch (292 mm) long, cut from 1330108CX bulk trim, not shown

2шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

38

1321640C1

GROMMET

- cover

2шт.

100295A1

HANDLE

feeder housing, has an "upper hole" which measures 12 mm (12.5 mm = 1/2 inch).

1шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

6-8шт.
