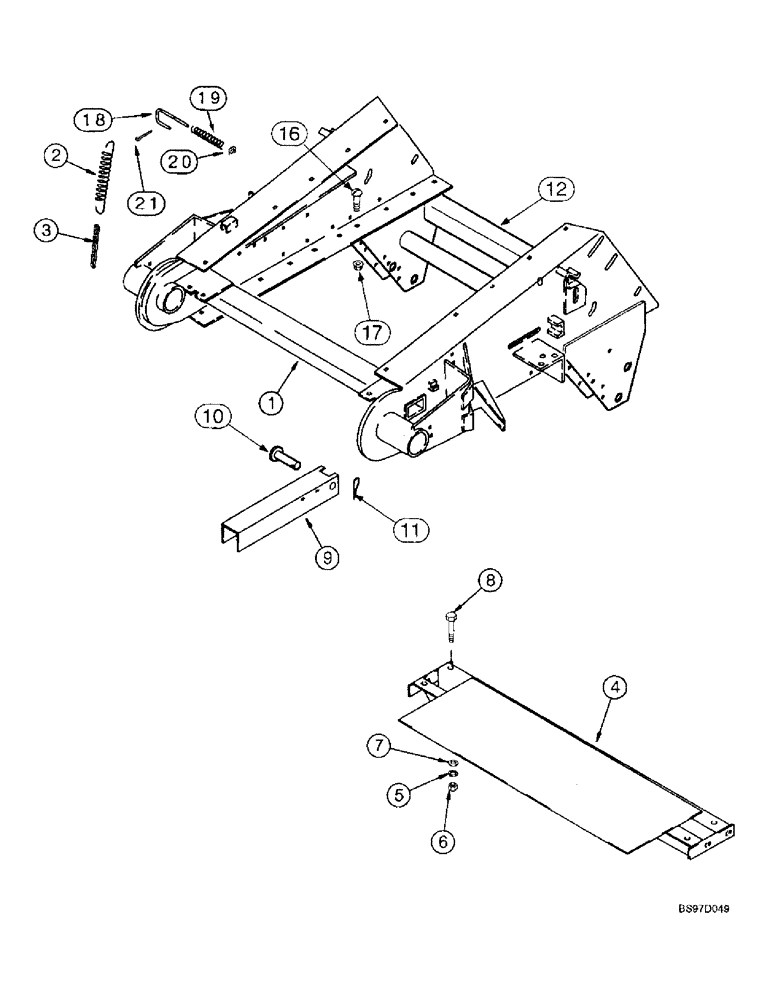

Запчасти Case IH 2188 (9A-34) - FEEDER, LIFT BRACKET AND SUPPORTS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder, see Figure 9A-30

1шт.

2

635503R1

SPRING,148.8mm Free Length

- latch

2шт.

3

167570C1

CHAIN,203.2mm L

- latch

2шт.

4

252123A1

SUPPORT

- reinforcement (Replaces support 1345332C2)

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

9

124060A3

STAND

CHANNEL - lock, lift cylinder, prior to combine P.I.N. JJC0193725

1шт.

9a

243060A2

TUBE

CHANNEL - lock, lift cylinder, combine P.I.N. JJC0193725 and after, not shown

1шт.

10

439-52092

HEADED PIN,1 1/4" x 5 3/4"

PIN - headed, 1-1/4 x 5-3/4 inch

2шт.

10a

242303A1

PIN

- mounting, 1-1/4 x 6-1/2 inch, not shown

2шт.

11

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2-4шт.

16

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

8шт.

17

231-5146

FLANGE NUT,3/8"-16

8шт.

18

127411A1

PIN,7.92mm OD

- cylinder lift lock, 189 mm long, prior to combine P.I.N. JJC0193725

1шт.

18a

243058A3

PIN,9.53mm OD

ROD - cylinder lift lock, 183 mm long, combine P.I.N. JJC0193725 and after, not shown

1шт.

19

M296

SPRING

- lock pin

1шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Serial Range: -JJC0193725

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE JJC0193725 to

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.
