(9C-16) - RIGHT HAND FAN INLET SHIELD AND DOOR

Запчасти Case IH 2188 (9C-16) - RIGHT HAND FAN INLET SHIELD AND DOOR (15) - BEATER & CLEANING FANS

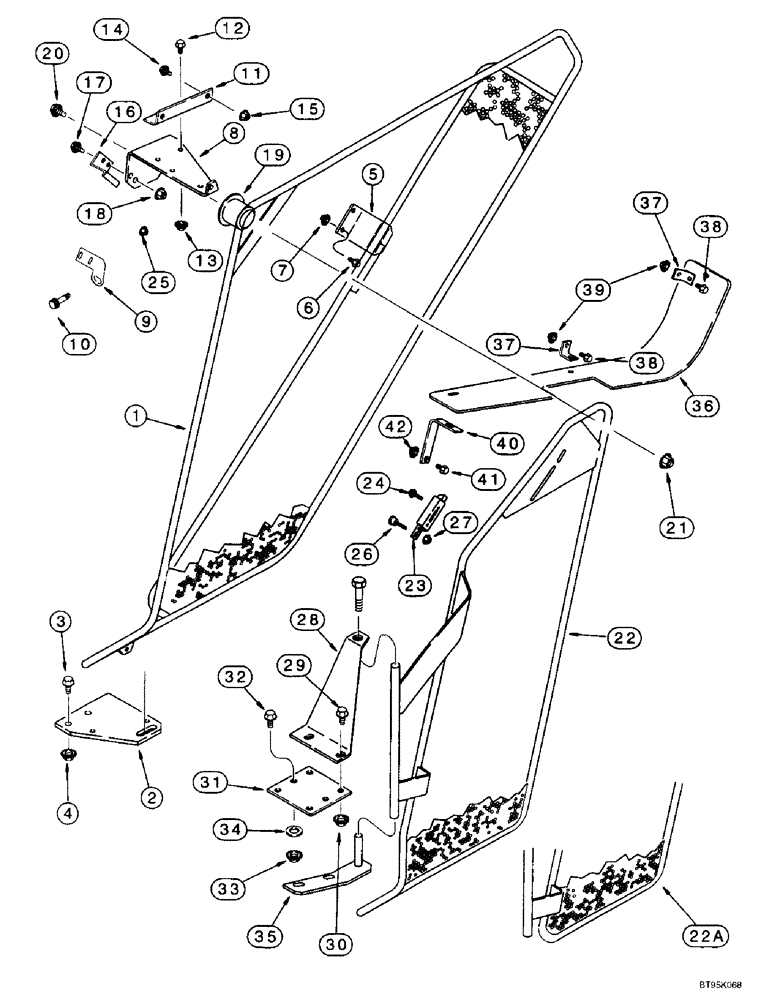

Схема запчастей Case IH 2188 - (9C-16) - RIGHT HAND FAN INLET SHIELD AND DOOR (15) - BEATER & CLEANING FANS
36
12
34
37
22
1
18
38
6
25
10
20
28
38
31
22a
3
24
32
23
39
29
9
2
37
26
4
11
7
16
21
17
27
15
8
42
33
35
40
19
14
13
41
5
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

142443A1

SHIELD

- fan inlet, models with wheels

1шт.

1a

226463A1

SHIELD

- fan inlet, models with tracks, not shown

1шт.

2

142450A2

SUPPORT

BRACKET - fan inlet shield, lower

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

5

142451A2

SUPPORT

BRACKET - fan inlet shield, side

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

142452A2

SUPPORT

BRACKET - fan inlet shield, upper

1шт.

9

182240A1

LARGE PLATE

PLATE - latch mounting

1шт.

10

121-511

HEX SOC SCREW,Shldr, 1/2" - 13 - 5/8" x 1 1/2"

BOLT - shoulder, hex socket, 1/2 NC x 3/4 inch, 1-1/2 inch shoulder

1шт.

11

142453A1

ANGLE

BRACKET - angle, right hand shield support

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

16

142454A1

BRACKET

PLATE - door latch striker

1шт.

17

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

142455A1

TUBE,13.5 mm ID

SUPPORT - shield, right hand

1шт.

20

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

- hex serrated flange, 1/2 NC x 3/4 inch

1шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

22

189361A1

GUARD

SHIELD - door, right-hand, includes decals, models with wheels, see Figure 9H-38 for decals

1шт.

22a

229811A1

SHIELD

- door, right-hand, includes decals, models with tracks, see Figure 9H-38 for decals

1шт.

23

142588A1

LOCK

LATCH - door

1шт.

24

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

96860C1

KNOB

- position control stop

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

142471A2

SUPPORT

- right-hand door, upper

1шт.

29

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

31

142473A1

PLATE

- right-hand door support

1шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

34

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

35

142474A2

SUPPORT

- right-hand door, lower

1шт.

36

142477A2

SHEET

SHIELD - tailings elevevator chain

1шт.

37

142478A2

BRACKET

ANGLE - chain shield, tailings elevator

2шт.

38

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

40

182838A1

LARGE PLATE

STRAP - shield support

1шт.

41

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
