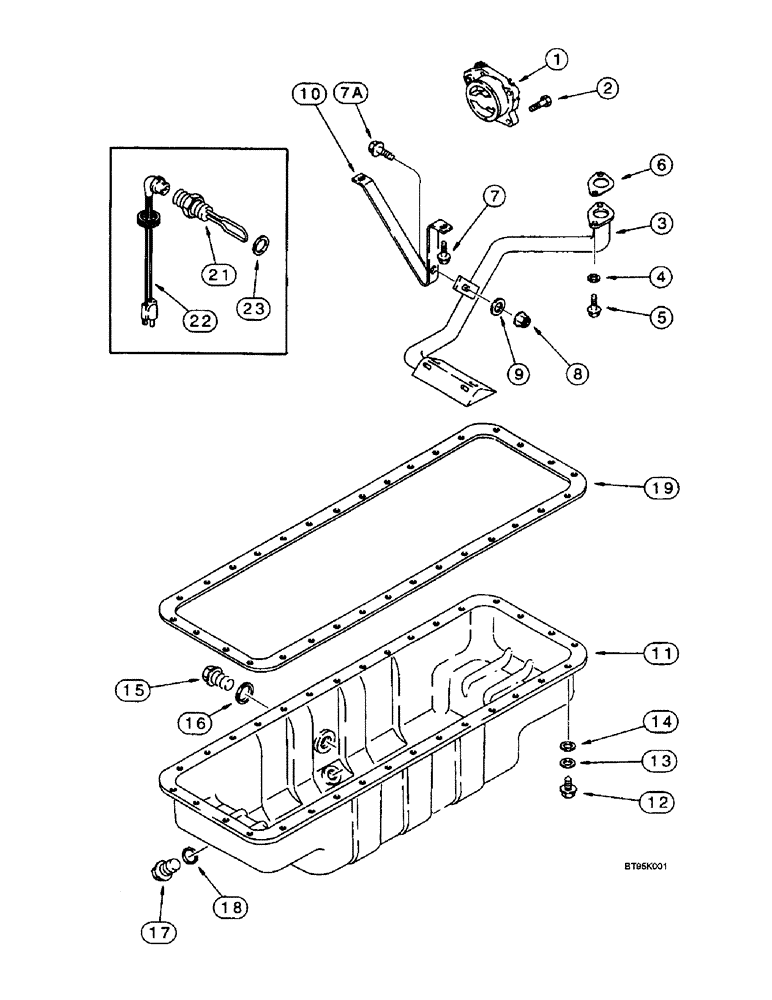

Запчасти Case IH 2188 (2-35A) - OIL PUMP, PAN AND HEATER, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE

1

J930338

PUMP, ENGINE OIL

PUMP - oil, 24 teeth drive gear (Replaces pump J926201)

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump, 24 teeth drive gear; For N.A. only; (Replaces pump assembly JR926201)

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921719

TUBE

TUBE - with screen, oil suction

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of P/N A77679 Gasket Kit

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

7a

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 20 mm

1шт.

8

J906216

FLANGE NUT

NUT - hex flange, special, 6 mm - 1.0

1шт.

9

J910960

WASHER

WASHER - flat, special

1шт.

10

J927611

BRACKET

BRACE - suction tube

1шт.

11

J914015

ENGINE OIL PAN

PAN - oil, engine

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm

32шт.

13

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

14

J908316

WASHER

WASHER - flat, special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

Part of P/N A77679 Gasket Kit

1шт.

17

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 12 mm - 1.5

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of P/N A77679 Gasket Kit

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of P/N A77679 Gasket Kit

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes Ref. 6, 16, 18 and 19

1шт.

A77580

SERVICE KIT

KIT - oil pan heater, engine oil

1шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, order kit A77850, oil pan heater kit

1шт.

22

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113), oil pan heater kit

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug, oil pan heater kit

1шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.
