(6-16) - FOOT-N-INCH VALVE HYDRAULIC SYSTEM, PRIOR TO COMBINE P.I.N. JJC0193725

Запчасти Case IH 2188 (6-16) - FOOT-N-INCH VALVE HYDRAULIC SYSTEM, PRIOR TO COMBINE P.I.N. JJC0193725 (03) - POWER TRAIN

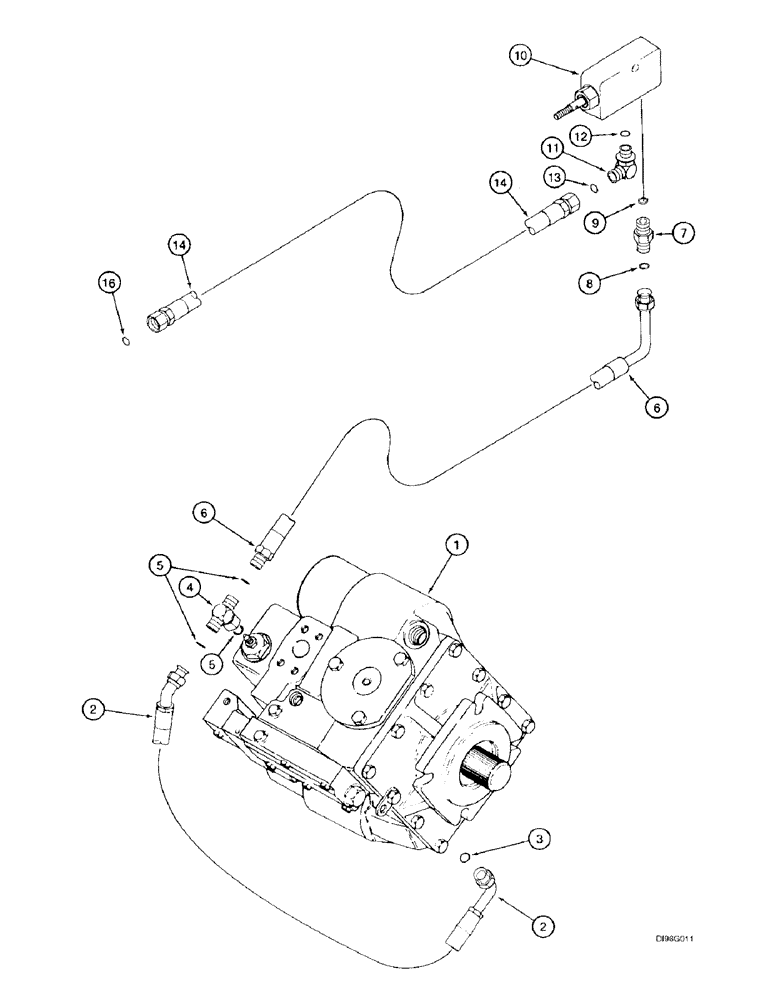

Схема запчастей Case IH 2188 - (6-16) - FOOT-N-INCH VALVE HYDRAULIC SYSTEM, PRIOR TO COMBINE P.I.N. JJC0193725 (03) - POWER TRAIN
10
5
1
14
16
7
5
13
2
6
3
12
6
11
8
9
2
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, see Figures 6-34 or 6-40 for correct motor

1шт.

2

141127A2

HOSE

- at motor relief valve, 15-3/4 inch (400 mm) long

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

201-426

TEE,9/16"-18 ORFS x 9/16"-18 Sw Br

- 9/16-18 inch swivel face branch x face x face, Includes: Ref. 5

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

6

141126A1

HOSE

- supply to foot-n-inch valve, 110-1/4 inch (2800 mm) long

1шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 8 and 9

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch, see Figure 6-18 for correct valve

1шт.

11

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss, Incl Ref 12 and 13

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

141158A2

FLEXIBLE HOSE

HOSE - return from foot-n-inch valve, 25-5/8 inch (651 mm) long

1шт.

241333A1

PACKAGE

KIT - foot-n-inch valve

1шт.

15

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

- 90 degree, 13/16-16 inch face seal x swivel face seal, not shown, Includes: Ref. 16

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

530575R91

SHIM KIT

KIT - shim, see Figure 6-18, not shown

1шт.

18

196868C2

SUPPORT

PLATE - support, not shown

1шт.

19

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Not shown Hex, M8 x 25, 8.8

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Not Shown M8 x 1.25, Cl 8

2шт.
