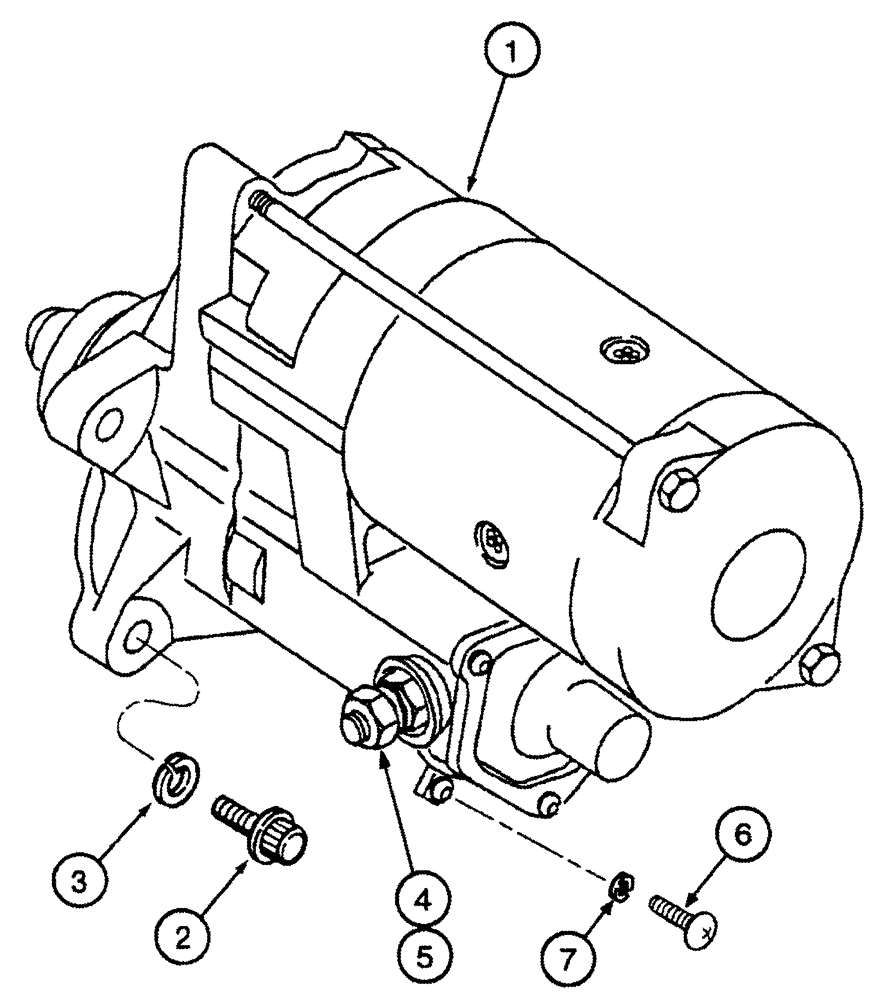

Запчасти Case IH 2344 (04-39) - STARTER - MOUNTING (06) - ELECTRICAL

1

193432A1

STARTING MOTOR

See Figure(s) 04-41

1шт.

1

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value, 12V, 4Kw

1шт.

1

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

1

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number Starter 12 volt, 4.0KW

1шт.

2

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

M12 x 35; 12.9

3шт.

3

892-11012

LOCK WASHER,M12

3шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

892-11005

LOCK WASHER,M5

1шт.
