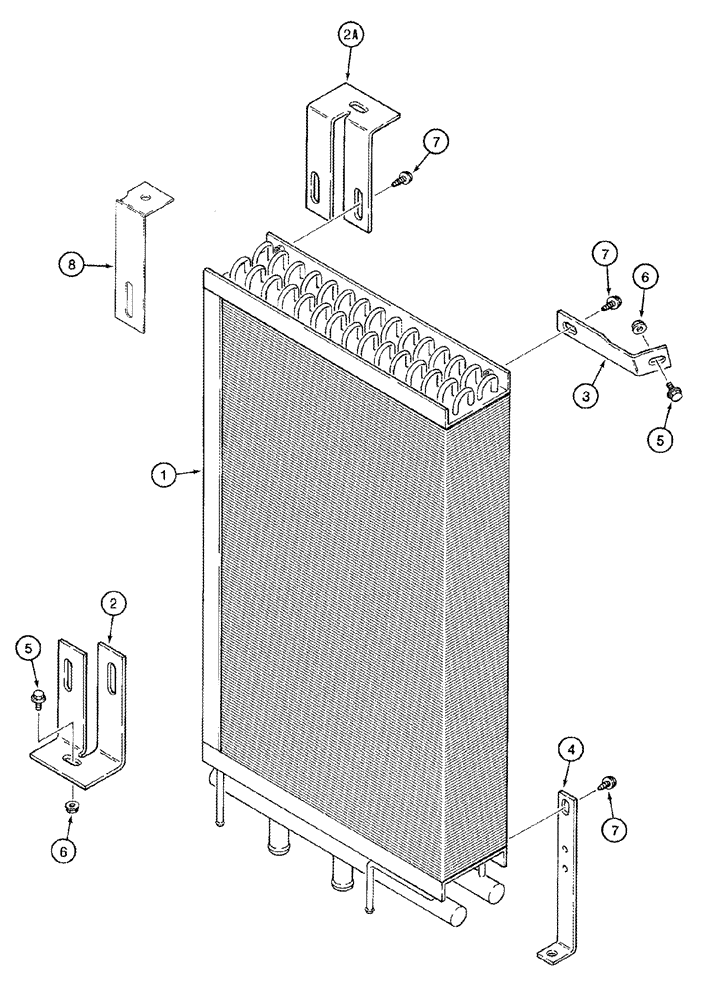

Запчасти Case IH 2344 (08-06) - OIL COOLER - MOUNTING (07) - HYDRAULICS

1

195441A3

COOLER

Combination, Fuel and Oil

1шт.

2

197431A2

SUPPORT

1шт.

2a

197430A2

SUPPORT

1шт.

3

1541787C2

ANGLE

1шт.

4

1324914C3

ANGLE

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

7

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

5шт.

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

3шт.

8

254134A1

SUPPORT

1шт.
