(07-05) - HYDRAULICS - BRAKE, PARKING AND TOW VALVE

Запчасти Case IH 2344 (07-05) - HYDRAULICS - BRAKE, PARKING AND TOW VALVE (5.1) - BRAKES

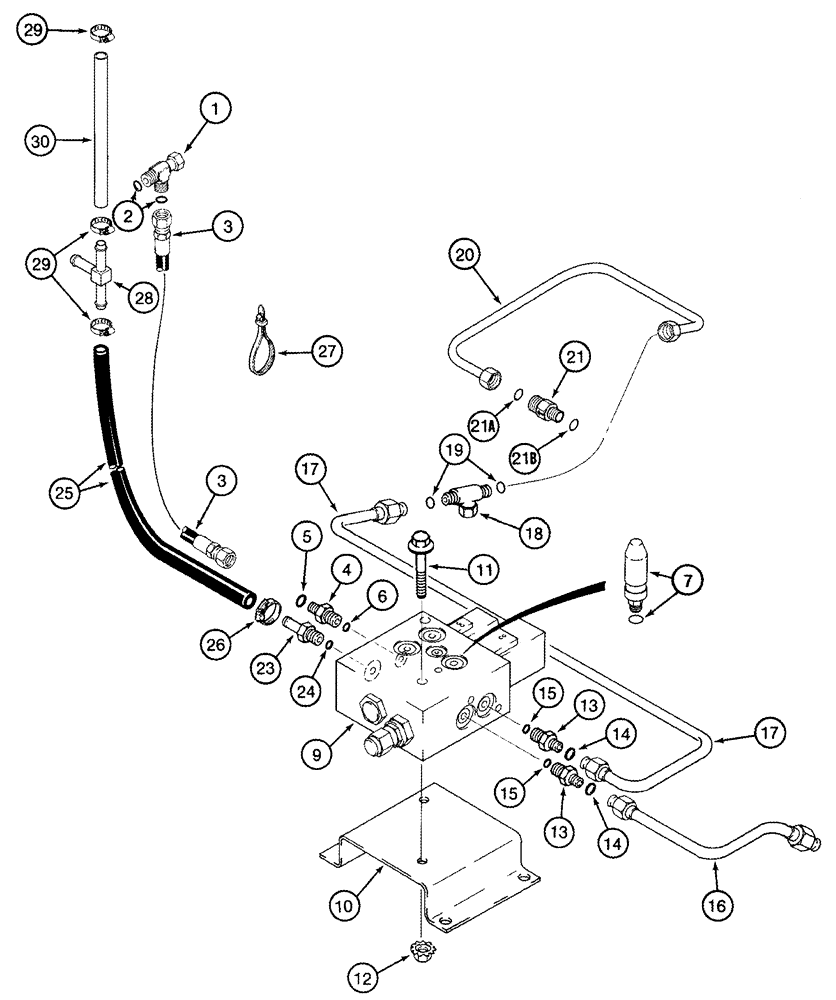

Схема запчастей Case IH 2344 - (07-05) - HYDRAULICS - BRAKE, PARKING AND TOW VALVE (5.1) - BRAKES
23
2
29
14
18
27
30
12
21
11
21a
6
14
24
7
20
25
9
19
13
17
13
10
29
4
3
15
16
1
15
5
21b
3
26
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

For Attaching Parts, See Figure(s) 07-02, REF 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

128039A2

FLEXIBLE HOSE

2330 mm (91-3/4 in), Valve Supply

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 5, 6

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.

7

125829A1

PRESSURE SWITCH

Parking Brake

1шт.

9

129010A4

CONTROL VALVE

Parking Brake And Feeder Clutch, See Figure(s) 08-18

1шт.

10

128293A1

SUPPORT

1шт.

11

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

12

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

13

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 14, 15

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

177158A2

TUBE

Parking Brake, Right Hand

1шт.

17

177159A2

TUBE

Parking Brake, Left Hand

1шт.

18

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

11/16 fc sl 11/16 sw, Inc. 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

277962A1

TUBE

1шт.

21

277961A1

VALVE

Inc. 21A, 21B, In-Line Check, Tow, For Attaching Parts, See Figure(s) 07-02, REF 40

1шт.

21a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

217-386

FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB

3/8 stem x 3/4 Or, Inc. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

128078A2

HYDRAULIC HOSE,9.52 mm ID x 1090.00 mm

Cut from S118400X, Brake Valve Return

1шт.

26

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

27

702093C1

CABLE TIE

CABLE STRAP

1шт.

28

123949A1

TEE

3/8 stem, Park Brake to Header Lift and Reel Drive, For Attaching Parts, See Figure(s) 08-11, REF 32, 34

1шт.

29

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

3шт.

30

254733A1

HOSE,0.38" ID x 30.00"

Cut From S118400X, Tee to Reel Drive Valve Return, For Attaching Parts, See Figure(s) 08-19, REF 28, 08-20 REF 32

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
