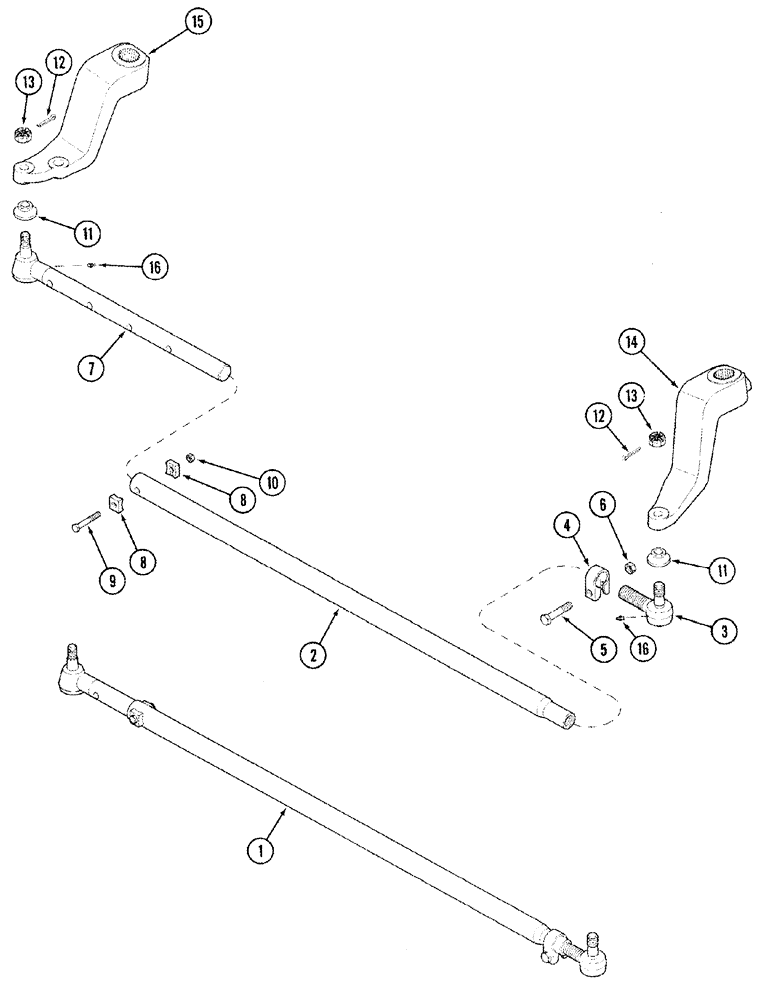

Запчасти Case IH 2344 (05-08) - TIE ROD - STEERING - ADJUSTABLE AXLE - WITHOUT POWER GUIDE AXLE - CORN AND GRAIN - BSN JJC0174359 (04) - STEERING

1

NSS

NOT SOLD SEPARAT

Rod Assy, Inc. 2 - 10

1шт.

2

1300170C1

TUBE

1шт.

3

1302687C1

JOINT

Right Hand

1шт.

4

225265R1

CLAMP

1шт.

5

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

6

231-4118

LOCK NUT,1/2"-13, GB

1/2

1шт.

7

1302686C1

JOINT

Left Hand

1шт.

8

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

Replaces A43369

4шт.

9

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

10

232-4636

LOCK NUT,3/8"-24, GC

2шт.

11

A41424

SEAL

2шт.

12

432-816

COTTER PIN,1/8" x 1"

2шт.

13

425-1310

SLOTTED NUT,5/8"-18, G5

2шт.

14

193911C4

ARM

Right Hand

1шт.

15

193912C3

STEERING ARM

Left Hand

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
