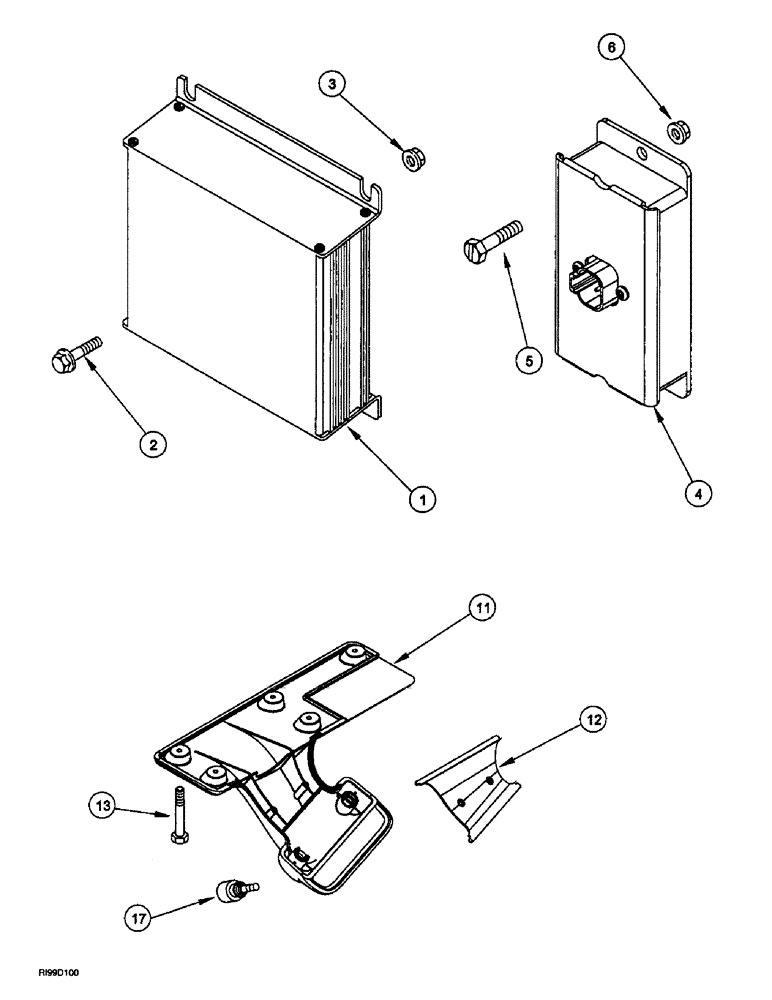

Запчасти Case IH 2366 (04-49) - AFS - YIELD MONITOR INTERFACE UNIT PACKAGE (06) - ELECTRICAL

336469A9

AFS PARTS & PACKAGES

PACKAGE - Yield Monitor Interface Unit, Inc. 1 - 24

1шт.

224597A3

SENSOR

Yelid Monitor Sensor, Not Shown

1шт.

1

86976394

ECU

Yield Monitor Interface Unit, Without Software, Replaces 348084A3

1шт.

1

86976394R

REMAN ELECT CONTROL

2366 CASE IH AXIAL-FLOW COMBINE (NA), Yield Monitor Interface Unit, Without Software (1/98-8/04)

1шт.

1

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

4

284638A2

ELEC CONNECTOR,4 Pin

Active Terminator

1шт.

5

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

No. 10 NC x 3/4 inch

2шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

7

365513A1

WIRE HARNESS

HARNESS - Main Yield Monitor Interface Unit Exterior, Not Illustrated, See Figure 04-47

1шт.

8

365512A1

WIRE HARNESS

HARNESS - Yield Monitor Cab Display, Not Illustrated, See Figure 04-48

1шт.

9

105849A1

RELAY

- Continuous Duty, 20 amp, Not Illustrated

1шт.

10

121412A1

FUSE,10A, Mini, Red

Not Illustrated 10 Amp, Mini

2шт.

10

121410A1

FUSE,5A, Mini, Tan

Not Illustrated 5 Amp, Mini

1шт.

11

351004A2

SUPPORT

- Inc. 17

1шт.

12

327387A1

COVER

- Display Mounting

1шт.

13

276-14520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

No. 10 x 1-1/4

5шт.

14

131-893

CLIP,#10 - 24

No. 10, Not IIlustrated

2шт.

15

231-51409

SERRATED NUT,Flg, USR, #10-24

Not Illustrated Flg, USR, #10-24

3шт.

16

495-31022

WASHER,#10

Not Illustrated #10

8шт.

17

319731A1

SCREW

M5

2шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Not Illustrated Cross Pan Hd, M4.8 x 19, Coated

2шт.

19

318575A1

WIRE HARNESS

Yield Sensor, Not Illustrated

1шт.

20

437321C1

tie, Not Illustrated

12шт.

21

232801A1

DOOR SEAL

SEAL - door, 1016 mm (40 in), Not Illustrated

1шт.

22

6-35690

MANUAL, OPERATORS

Universal Display and Universal Display Plus Yield Monitor, Not Illustrated, (Order direct from DMC)

1шт.

23

6-13830

INSTRUCTION

MANUAL, Quick Reference, AFS Display Operation, Not Illustrated, (Order direct from DMC)

1шт.

24

7-89241

INSTRUCTION

Yield Monitor Interface Installation, Not Illustrated, (Order direct from DMC)

1шт.
