(08-08) - OIL COOLER, AUXILIARY - MOUNTING - RICE COMBINE

Запчасти Case IH 2366 (08-08) - OIL COOLER, AUXILIARY - MOUNTING - RICE COMBINE (07) - HYDRAULICS

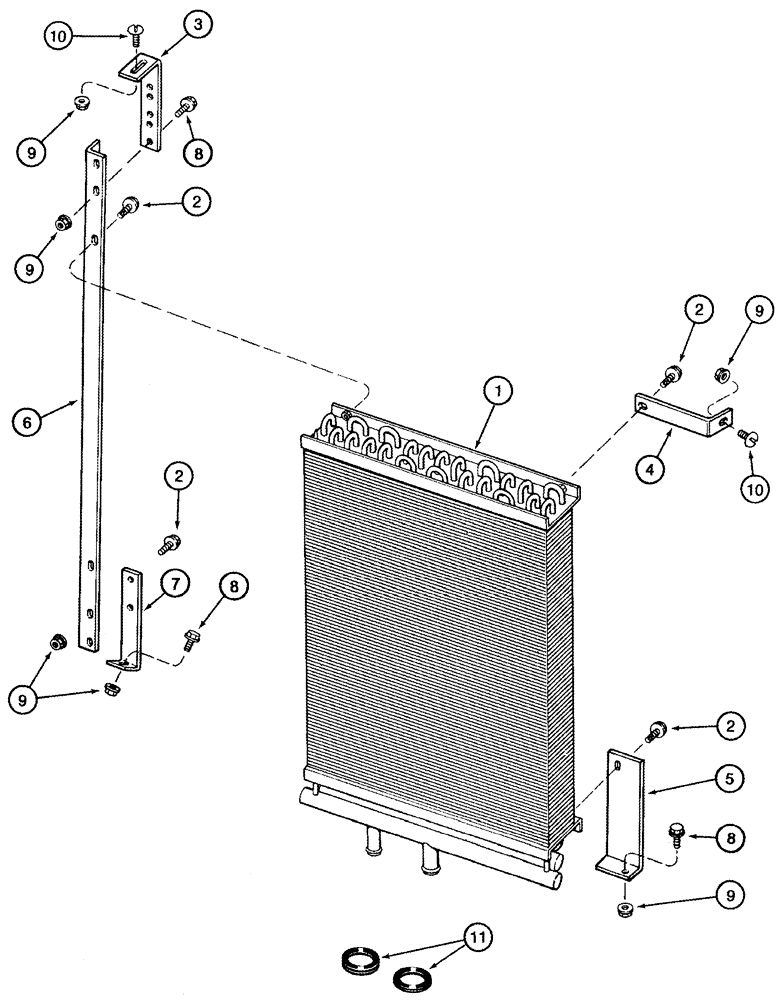

Схема запчастей Case IH 2366 - (08-08) - OIL COOLER, AUXILIARY - MOUNTING - RICE COMBINE (07) - HYDRAULICS
10
2
9
2
2
8
9
9
9
8
6
9
4
10
7
5
8
3
11
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

135484A1

OIL COOLER

1шт.

2

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

3

1979632C2

SUPPORT

Upper Left Hand

1шт.

4

1979674C1

SUPPORT

Upper Right Hand

1шт.

5

1979787C2

SUPPORT

Lower Right Hand

1шт.

6

1979633C2

SUPPORT

Left Hand

1шт.

7

1979727C1

SUPPORT

Lower Left Hand

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

11

1970461C1

GROMMET

1-3/8 x 2 x 5/16

2шт.
