(02-02) - ROTARY AIR SCREEN BAFFLE SEALS - BSN JJC0255700

Запчасти Case IH 2366 (02-02) - ROTARY AIR SCREEN BAFFLE SEALS - BSN JJC0255700 (01) - ENGINE

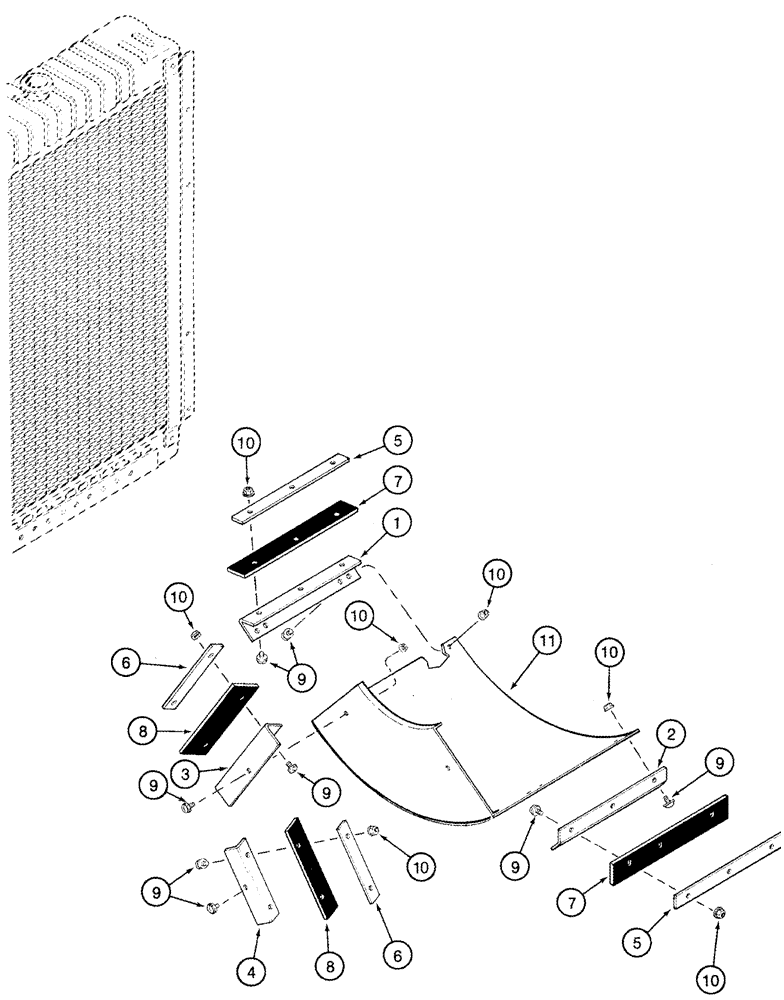

Схема запчастей Case IH 2366 - (02-02) - ROTARY AIR SCREEN BAFFLE SEALS - BSN JJC0255700 (01) - ENGINE
7
10
4
8
10
9
6
9
2
10
1
10
7
6
11
9
9
8
10
9
3
5
5
10
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1977159C1

SUPPORT

Left Hand

1шт.

2

1977160C1

SUPPORT

Right Hand

1шт.

3

1977161C1

SUPPORT

Left Hand Rear

1шт.

4

1977162C1

SUPPORT

Right Hand Rear

1шт.

5

1977163C1

LARGE PLATE

PLATE, LARGE Side, 300 mm (11-13/16 in)

2шт.

6

1977164C1

SEALING STRIP

Rear, 165 mm (6-1/2 in)

2шт.

7

1977165C1

SEAL

Side, 304 mm (12 in)

2шт.

8

1977166C1

SEAL

Rear, 203 mm (8 in)

2шт.

9

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

12шт.

10

231-4144

NUT,1/4"-20, GB

12шт.

11

194224C1

BAFFLE ASSY.

See Figure 02-05, Ref. 6

1шт.
