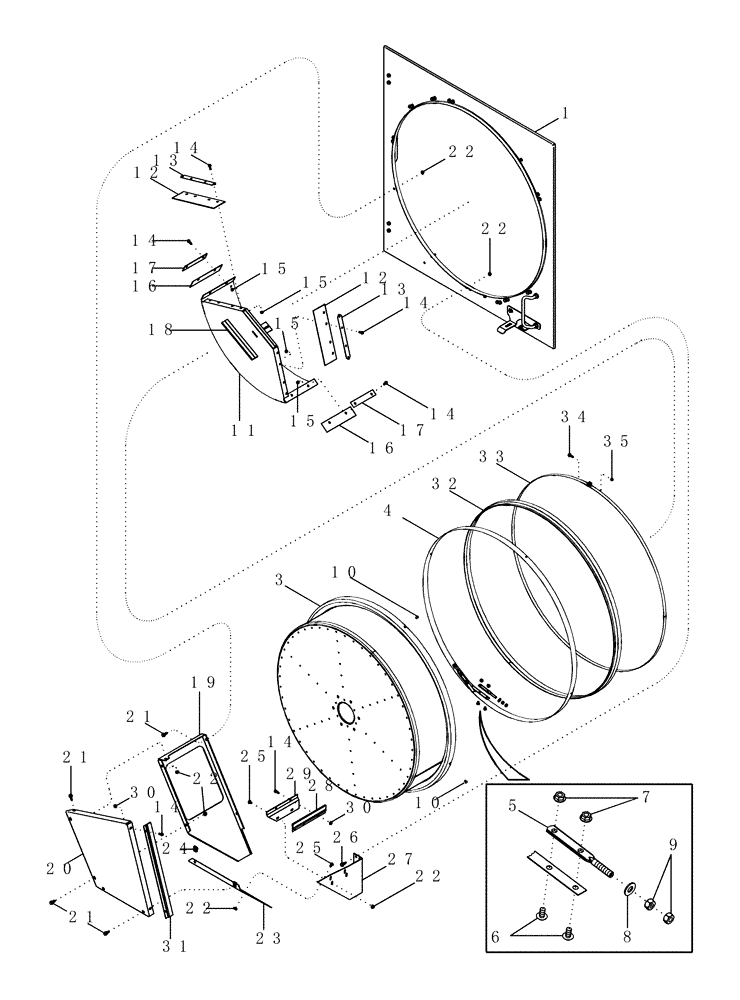

Запчасти Case IH 2366 (02-05[04]) - METAL ROTARY AIR SCREEN ASSY, WITH VERTICAL DIRT CHUTE AND BRUSHES - BTW JJC0255700 & JJC0256341 (01) - ENGINE

1

87413638

DOOR

Cooler Access, See Figure 02-05 (02)

1шт.

2

REF

INSTRUCTION

Screen Assy Rotary Air, Inc. 3 - 10

1шт.

3

87418044

SCREEN

Rotary Air

1шт.

4

87417475

BAND

Assy

1шт.

5

87413544

BOLT

Drawbolt Ring

2шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

3шт.

11

87412949

SHEET

1шт.

12

87408561

SEAL

2шт.

13

87408560

BAR

2шт.

14

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

16шт.

15

231-4144

NUT,1/4"-20, GB

12шт.

16

1977166C1

SEAL

Baffle Rear

2шт.

17

1977164C2

STRIP

2шт.

18

87413136

BRUSH, COMMUTATOR

BRUSH Inner

1шт.

19

87412286

SUPPORT

Dirt Chute Rear

1шт.

20

87412289

PANEL

Upper

1шт.

21

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

13шт.

23

87412288

PANEL

Lower

1шт.

24

488837C1

SPRING NUT

Speed

2шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

6шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

27

87412287

SUPPORT

Dirt Chute Front

1шт.

28

414883A2

BRUSH

1шт.

29

87413935

SUPPORT

Horizontal

1шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

87414124

BRUSH, COMMUTATOR

BRUSH Angled

1шт.

32

86976657

SEAL

Rotary Screen

1шт.

33

86976658

CLAMP,1060mm

1шт.

34

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

35

231-1444

NUT,1/4"-20, GB

1шт.
