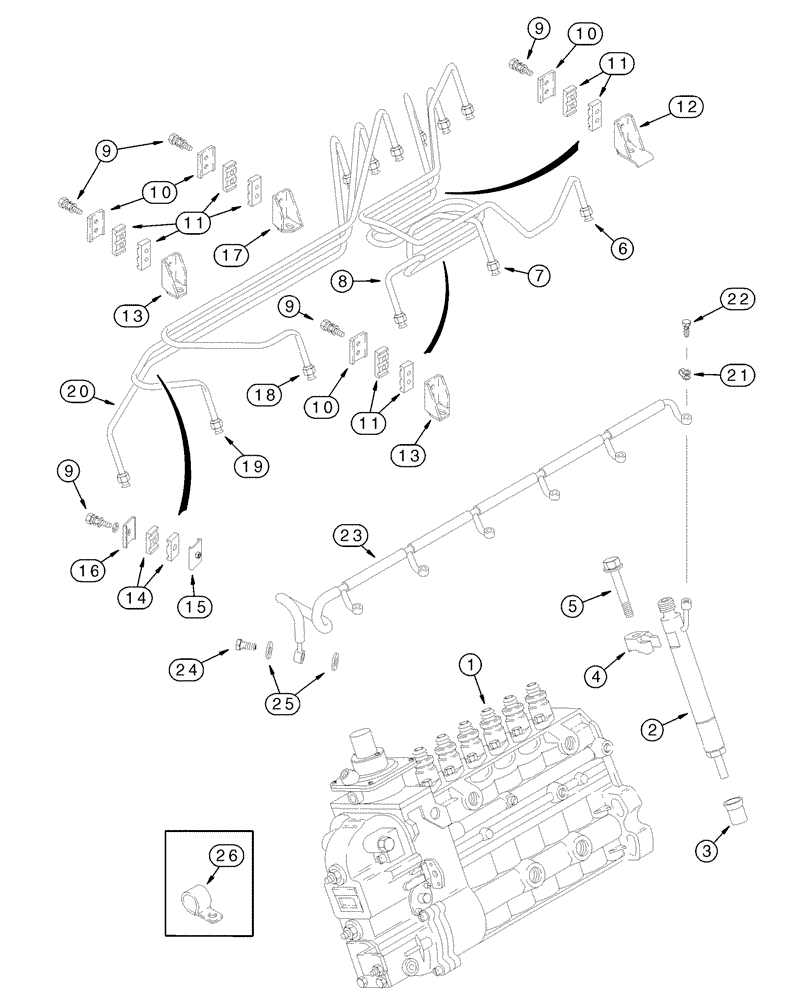

Запчасти Case IH 2366 (03-01[02]) - FUEL INJECTION SYSTEM - ASN JJC0255700 (02) - FUEL SYSTEM

1

87402490

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 03-04

1шт.

2

87402526

INJECTOR ASSY.

With Cylindrical Type Nozzle, See Figure 03-05

6шт.

2

87402528

REMAN-FUEL INJECTOR

REMANUFACTURED INJECTOR ASSY.

6шт.

2

87402529

CORE-FUEL INJECTOR

Return Number, INJECTOR ASSY.

6шт.

2

87433377

INJECTOR ASSY.

With Conical Type Nozzle, See Figure 03-05

6шт.

2

87433378

REMAN-FUEL INJECTOR

Remanufactured INJECTOR

6шт.

2

87433379

CORE-FUEL INJECTOR

Return Number, INJECTOR

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J930391

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 1

1шт.

7

J930392

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 2

1шт.

8

J930393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 3

1шт.

9

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

9шт.

10

J991275

BRACKET

4шт.

11

J917747

CLAMP

8шт.

12

J919622

BRACE

1шт.

13

J282942

BRACKET

1шт.

14

J917746

CLAMP

2шт.

15

J991277

BRACE

1шт.

16

J991276

BRACE

1шт.

17

J282942

BRACKET

1шт.

18

J930394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 4

1шт.

19

J930395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 5

1шт.

20

J930396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 6

1шт.

21

J903380

SEAL

6шт.

22

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

23

J920595

TUBE ASSY.

1шт.

24

J924726

BANJO BOLT

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.
