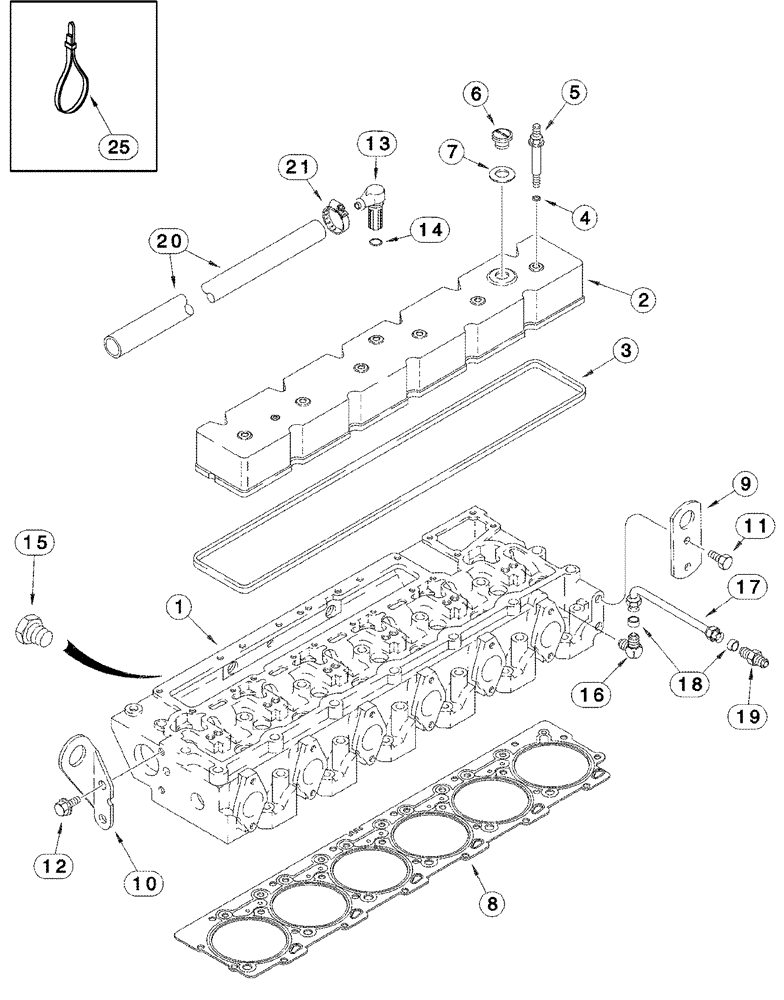

1
REF
INSTRUCTION
Head Assy
1шт.
See Figure 02-27
1шт.
2
J930903
VALVE COVER
1шт.
3
J905449
SEAL,7.179mm W x 2090mm L
1шт.
4
J910824
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
6шт.
5
J922639
STUD
6шт.
6
J902468
FILLER CAP,Male
1шт.
7
J902466
SEAL,39.35mm ID x 59.35mm OD x 3mm Thk
1шт.
8
J943366
CYLINDER HEAD GASKET,2.11mm Thk
Standard
1шт.
8
J935586
CYLINDER HEAD GASKET,1.91mm Thk
0.25 mm
1шт.
8
J935587
CYLINDER HEAD GASKET,2.38mm Thk
0.50 mm
1шт.
9
J907861
LIFTING EYE
Lift, Front
1шт.
10
J906440
LIFTING EYE
Lift, Rear
1шт.
11
844-12025
BOLT,Hvy Hex, M12 x 25mm, Cl 8.8
2шт.
12
844-12025
BOLT,Hvy Hex, M12 x 25mm, Cl 8.8
2шт.
13
J935113
ELBOW
1шт.
14
J936331
SEAL,17.7mm ID x 22.74mm OD x 3.5mm Thk
1шт.
15
J906619
PLUG,1/8" - 27
1/8 PT
1шт.
16
87026320
ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF
1/4 tube OD x 1/8 PT
1шт.
17
J924589
TUBE,6.35 mm OD x 112.6 mm L
Includes 18
1шт.
18
222-153
SLEEVE,1/4" Tube
2шт.
19
87026319
HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut
1/4 tube OD x 1/8
1шт.
20
1541750C1
HOSE
Crankcase Breather, 3760 mm (148-1/8 in), Cut From 364360C2
1шт.
21
214-1516
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner
1шт.
24
515-25286
CLAMP,1 1/8", Insul, 3/8" Bolt
1шт.
25
306132C1
CABLE TIE,14.5" L
CABLE STRAP
1шт.
