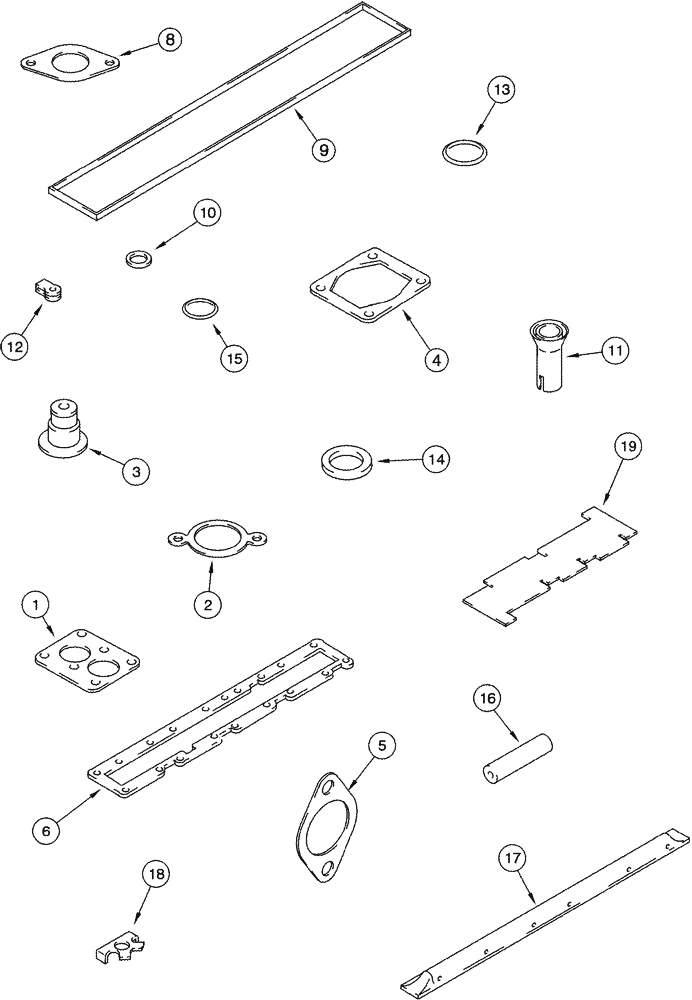

A78042
KIT
Valve Grind, Inc. 1, 2, 3 - 6, 8 - 20
1шт.
1
J914310
GASKET,0.8mm Thk
Thermostat Housing
1шт.
2
J918779
GASKET,1.19mm Thk
Water Outlet
1шт.
3
J927642
SEAL
Valve Stem, Exhaust
12шт.
4
J911941
GASKET
1шт.
4
J755843
GASKET,0.5mm Thk
Turbo Mount
1шт.
5
J932063
MANIFOLD GASKET,1.78mm Thk
1шт.
6
J936993
MANIFOLD GASKET,0.76mm Thk
Intake
1шт.
8
J937706
GASKET,0.79mm Thk
Oil Drain
1шт.
9
J905449
SEAL,7.179mm W x 2090mm L
Valve Cover
1шт.
10
J910824
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
Valve Cover Bolts
6шт.
11
J909886
SEAL,16.9mm ID x 22mm OD x 38mm L
Injector
6шт.
12
J903380
SEAL
Banjo Connector
7шт.
13
238-5115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
1шт.
14
J937142
SEAL,7mm ID x 15mm OD x 1.5mm Thk
1,5 mm
6шт.
14
J923261
WASHER,7.2mm ID x 15mm OD x 2.5mm Thk
Injector Tip, 2,5 mm
6шт.
15
238-5111
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
Water Filter Shut-off
1шт.
16
J930827
HOSE,51.00 mm
Not Used In This Application
1шт.
17
J919677
TUBE
1шт.
18
J914708
LOCKING PLATE
Exhaust Manifold Bolts
12шт.
19
87404692
GAUGE
Cylinder Head Bolt Length
1шт.
20
J929012
GASKET,0.5mm Thk
Exhaust Manifold, Not Illustrated
6шт.
