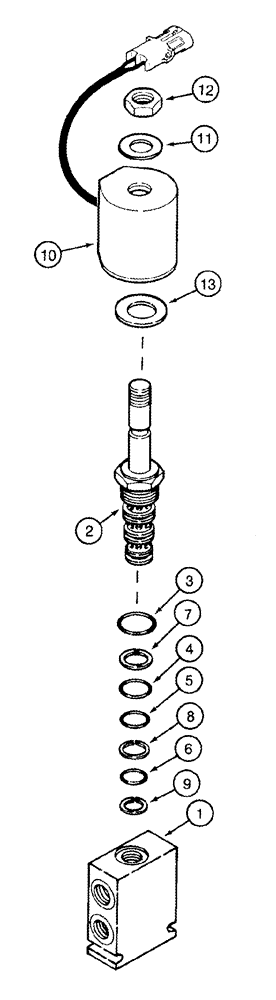

Запчасти Case IH 2388 (08-29) - VALVE ASSY - UNLOADER CLUTCH BSN JJC0268799 (07) - HYDRAULICS

131152A1

CONTROL VALVE

Includes 1 - 13, Separator/Unloader Clutch

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 131152A1

1шт.

2

187849C1

SOLENOID VALVE

4-Way, Includes 187850C1

1шт.

187850C1

SEAL KIT

Includes 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

1340843C1

SOLENOID,12V

12V, Includes 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

Coil

1шт.

11

NSS

NOT SOLD SEPARAT

Plate

1шт.

12

NSS

NOT SOLD SEPARAT

Nut

1шт.

13

NSS

NOT SOLD SEPARAT

Plate

1шт.
