(08-32[01]) - VALVE ASSY - ROTARY SCREEN BYPASS - BSN JJC0273000

Запчасти Case IH 2388 (08-32[01]) - VALVE ASSY - ROTARY SCREEN BYPASS - BSN JJC0273000 (07) - HYDRAULICS

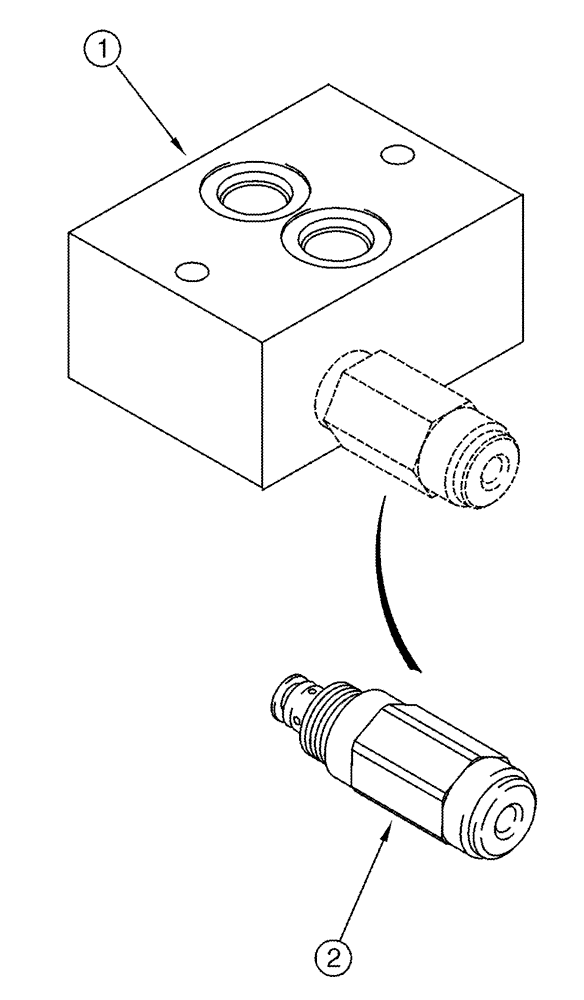

Схема запчастей Case IH 2388 - (08-32[01]) - VALVE ASSY - ROTARY SCREEN BYPASS - BSN JJC0273000 (07) - HYDRAULICS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

327580A1

BY-PASS VALVE

Rotary Air Screen, Includes 1 - 5, Replaces 255946A2

1шт.

2

295942A1

VALVE PRESSURE RELIE,3/4" - 14

Includes 3 - 5

1шт.

1542831C1

SEAL KIT

Seal, Not Illustrated, Includes 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.
