1
245927C93
STARTING MOTOR

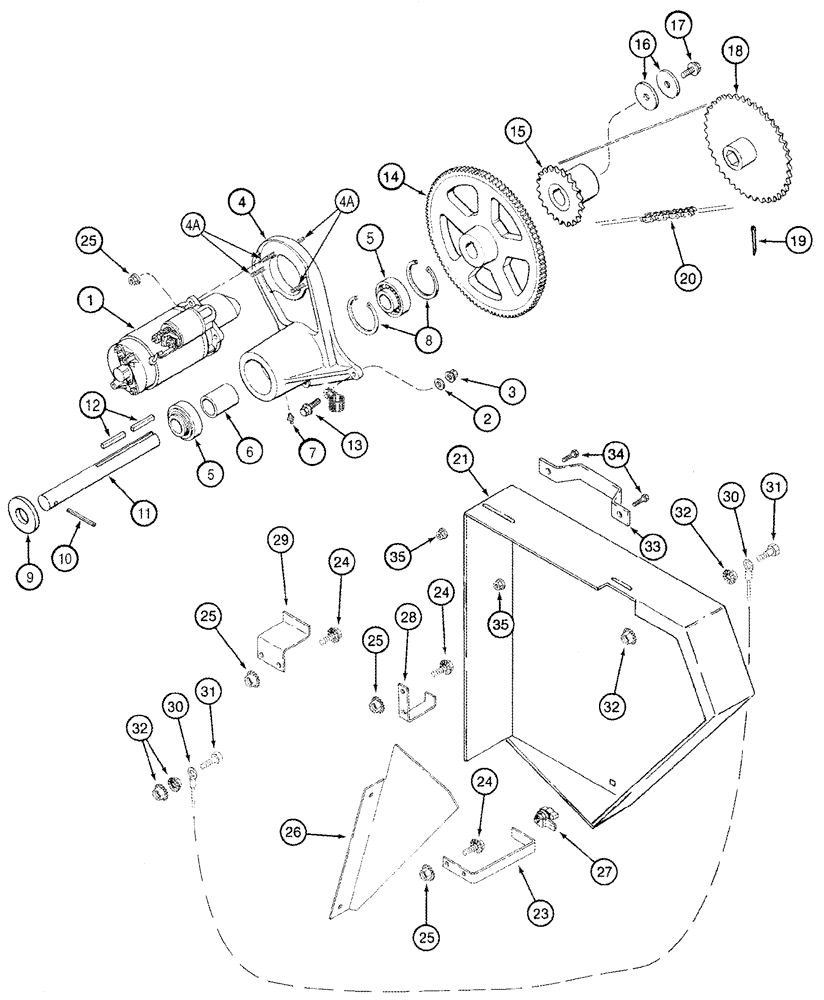

Feeder Reverser, See Figure 04-42
1шт.
1
245927C93R
REMAN-STARTER
REMANUFACTURED STARTING MOTOR
1шт.
1
245927C93C
CORE-STARTER
Return Number, STARTING MOTOR
1шт.
2
180358
LOCK WASHER,Int Tooth, 3/8", Hvy
2шт.
3
329-286
FLANGE NUT,Flg, 3/8"-16, G8
2шт.
176110A2
HOUSING
Includes 4 - 8
1шт.
4
NSS
NOT SOLD SEPARAT
Housing
1шт.
4a
121299A1
STUD
3шт.
5
597537R91
BEARING ASSY,38.1mm ID x 80mm OD x 18mm W
2шт.
6
1321523C1
SPACER
1шт.
7
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
8
100-21315
SNAP RING,3.156", Int, #315
2шт.
9
896-16036
WASHER,39mm ID x 78mm OD x 7mm Thk
1шт.
10
38-33248
PIN,1/2" x 3", Coiled
1шт.
11
1321534C1
SHAFT
1шт.
12
Q51
KEY,3/8" Sq x 2 1/2", Par
2шт.
13
409-7624
BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl
2шт.
14
1321537C92
PINION,320mm OD, W/ Ring Gear
1шт.
15
1329717C1
SPROCKET
20T, Drive
1шт.
16
495-91167
WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk
2шт.
17
409-7816
BOLT,Hex Flg, 1/2" - 13 x 1", Spcl
1шт.
18
1329720C2
SPROCKET
40T, Driven
1шт.
19
432-2040
COTTER PIN,5/16" x 2 1/2"
1шт.
20
1321524C94
CHAIN,60, 76 Links x 19.05mm = 1447.8mm
57", 76 links
1шт.
111714A1
LINK,Connecting
Connecting Link
1шт.
21
126240A8
SHIELD
1шт.
23
132683A2
SUPPORT
Lower Front
1шт.
24
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
1шт.
25
231-5146
FLANGE NUT,3/8"-16
1шт.
26
186266A2
SUPPORT
1шт.
27
138699A1
LOCK
1шт.
27
135476A1
LOCK
Australia Only
1шт.
28
132685A2
SUPPORT
Upper Front
1шт.
29
132686A3
SUPPORT
Upper Rear
1шт.
30
132657A2
CABLE
1шт.
31
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
32
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
4шт.
33
160638C2
HANDLE
1шт.
34
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
2шт.
35
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
