(08-29) - VALVE ASSY - ROTARY SCREEN BYPASS

Запчасти Case IH 2388 (08-29) - VALVE ASSY - ROTARY SCREEN BYPASS (07) - HYDRAULICS

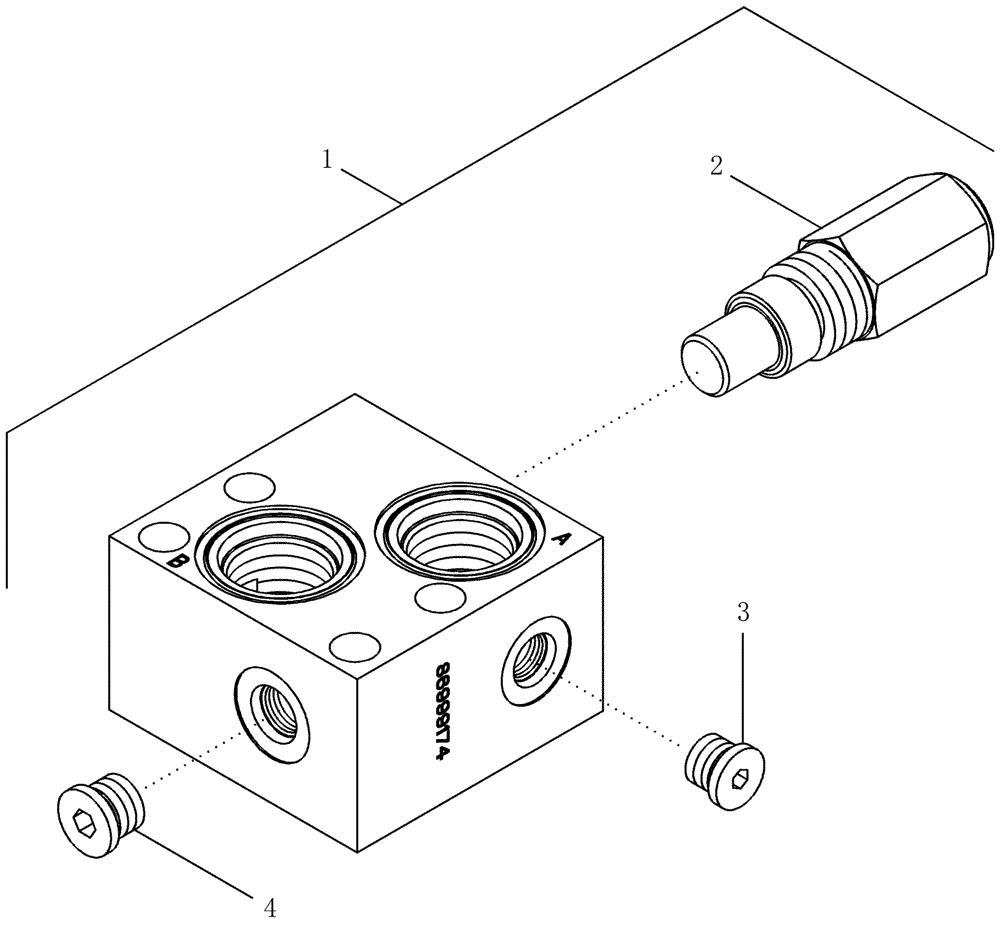

Схема запчастей Case IH 2388 - (08-29) - VALVE ASSY - ROTARY SCREEN BYPASS (07) - HYDRAULICS
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86999174

VALVE PRESSURE RELIE

Rotary Air Screen, Inc. 2 - 4, Serial Range: -HAJ301707

1шт.

1

87641223

VALVE

Rotary Air Screen, Inc. 2 - 4, Start Serial: HAJ301707

1шт.

2

86987869

VALVE PRESSURE RELIE

, Serial Range: -HAJ301707

1шт.

2

87645709

VALVE

280 psi, Preset, Start Serial: HAJ301707

1шт.

3

87035062

PLUG,Hex, 1/2"-20 ORB

1шт.

4

9625178

PLUG,9/16" - 18 ORB

1шт.

5

149942C1

SEAL KIT

Inc. (2) O-rings And Back-up Ring, (Not Shown), Serial Range: -HAJ301707

1шт.
