(09G-05) - CAB - FLOOR MAT AND INSULATION

Запчасти Case IH 2388 (09G-05) - CAB - FLOOR MAT AND INSULATION (10) - CAB & AIR CONDITIONING

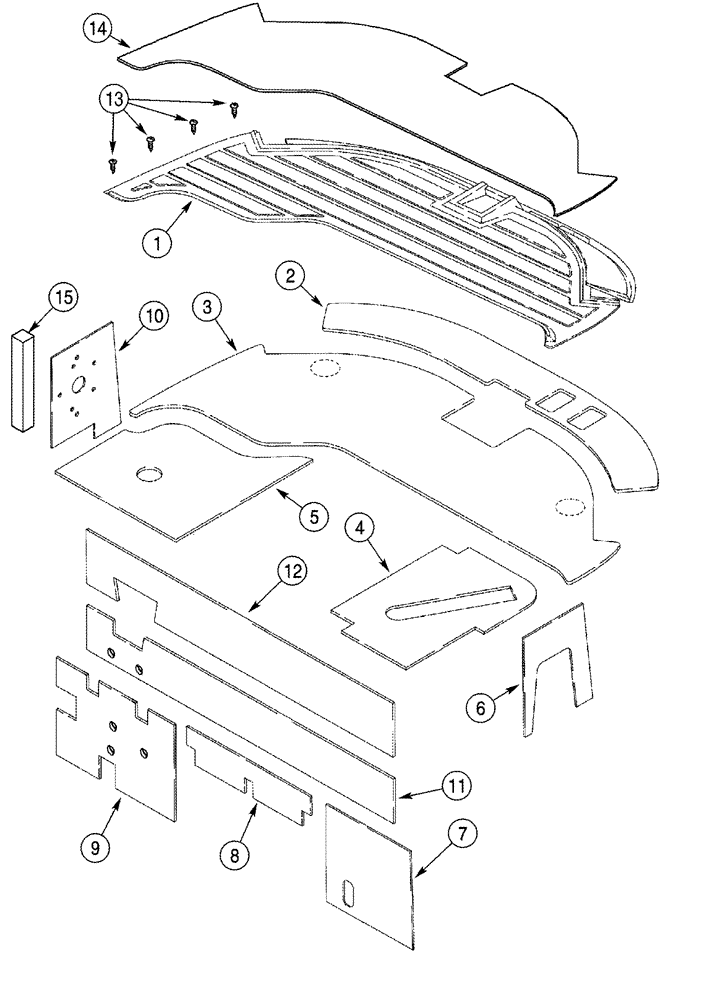

Схема запчастей Case IH 2388 - (09G-05) - CAB - FLOOR MAT AND INSULATION (10) - CAB & AIR CONDITIONING
4
1
3
12
7
5
2
13
10
9
14
15
6
11
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

132228A1

MAT

Cab

1шт.

2

136485A1

MAT

Floor, Front

1шт.

3

136484A1

MAT

Floor

1шт.

4

125038A1

FOAM INSULATION

Floor, Right Hand Rear

1шт.

5

125037A2

FOAM INSULATION

Floor, Left Hand Rear

1шт.

6

247007A1

FOAM INSULATION

Lower Right Hand

1шт.

7

125040A2

FOAM INSULATION

Lower Right Hand Rear

1шт.

8

119486A1

FOAM INSULATION

Lower Rear Center

1шт.

9

125041A3

FOAM INSULATION

Lower Left Hand Rear

1шт.

10

125042A2

GASKET,6.4mm Thk

1шт.

11

137944A2

FOAM INSULATION

Center Rear

1шт.

12

137945A1

FOAM INSULATION

Upper Rear

1шт.

13

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

4шт.

14

182658A1

PROTECTOR,Cardboard

1шт.

15

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

2шт.
