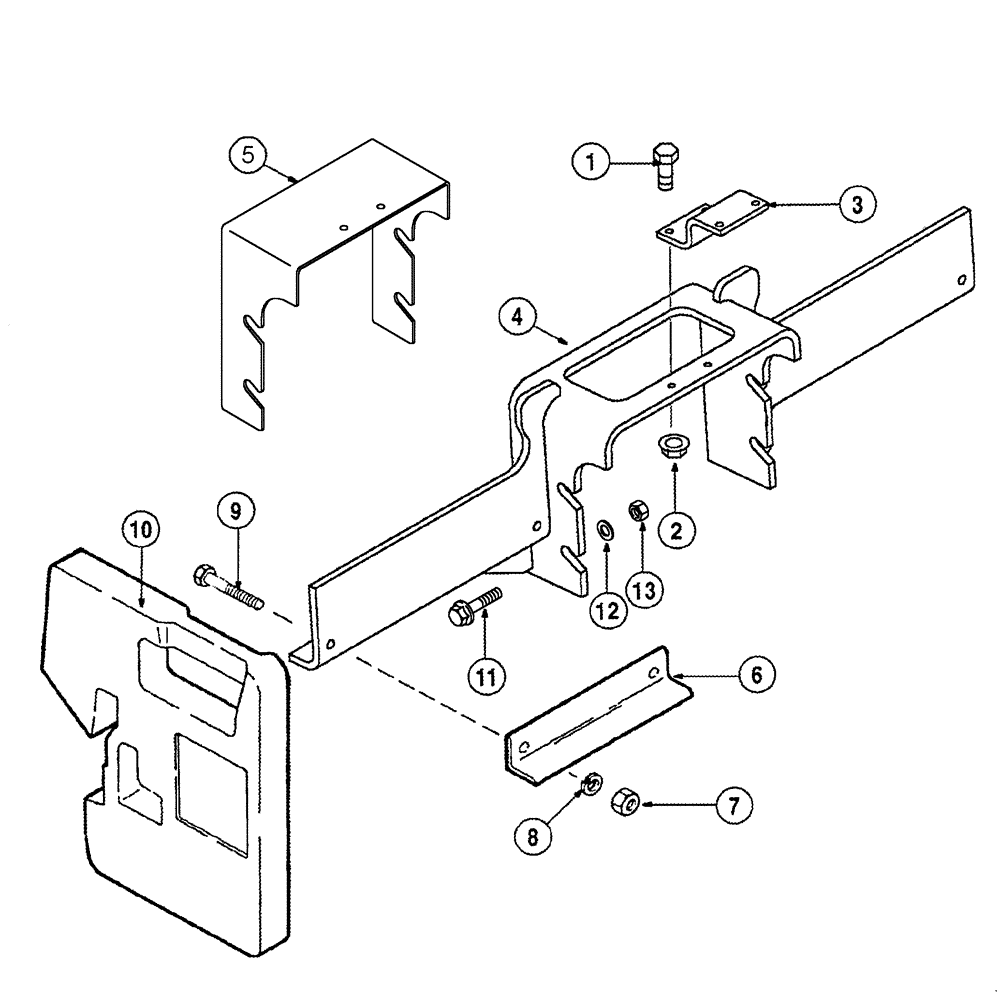

Запчасти Case IH 2388 (05-26) - AXLE, STEERING - WEIGHTS - 16 WEIGHTS (11) - TRACKS/STEERING

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

Use For PGA Axles in Position 4, Not required On Combines Equipped With Weight Bracket

1шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

Use For PGA Axles in Position 4, Not required On Combines Equipped With Weight Bracket

1шт.

3

406560A1

SUPPORT

Valve Mounting

1шт.

Use For PGA Axles in Position 4, Not required On Combines Equipped With Weight Bracket

1шт.

4

431785A1

SUPPORT

1шт.

5

87584252

CHANNEL

1шт.

Use For PGA Axles in Position 4, Not required On Combines Equipped With Weight Bracket

1шт.

6

193442A2

BRACKET

2шт.

7

231-4248

NUT,1/2"-13, GB

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

10

148347C1

WEIGHT,100 LB

Weight, 100 lb

1шт.

Order From Machinery Price List

1шт.

11

9602203

BOLT,Hex, 3/4" x 5", Gr 8

8шт.

12

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

13

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

4шт.
