(35.410.05) - CYLINDER ASSY - FIELD TRACKER, TILT

Запчасти Case IH 2577 (35.410.05) - CYLINDER ASSY - FIELD TRACKER, TILT (35) - HYDRAULIC SYSTEMS

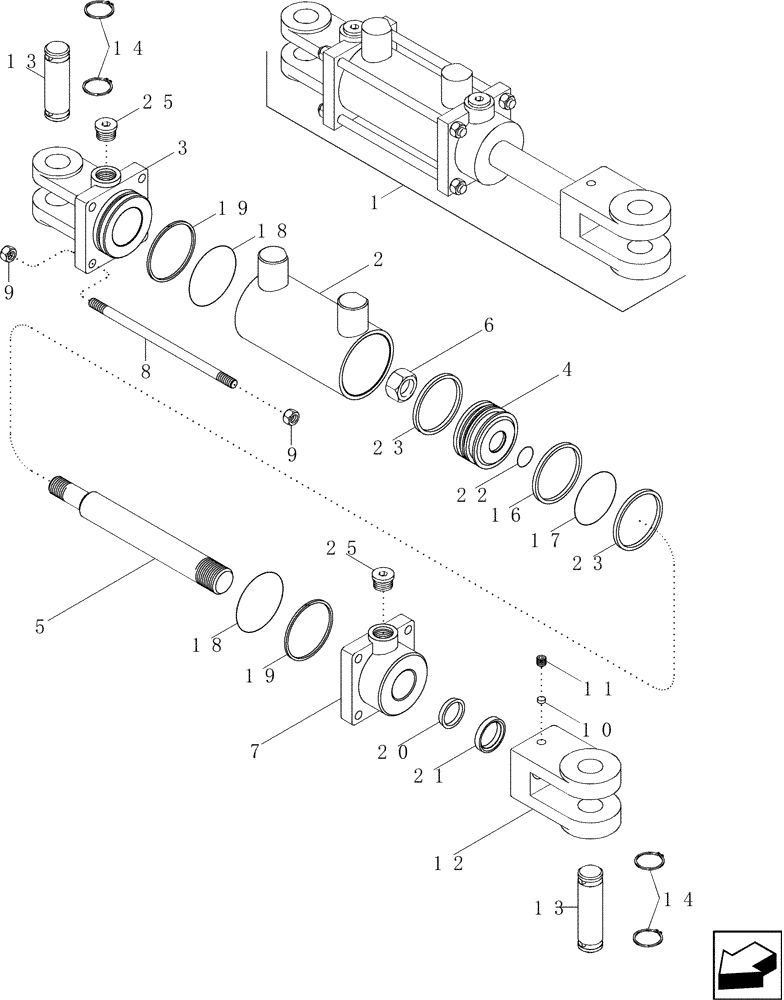

Схема запчастей Case IH 2577 - (35.410.05) - CYLINDER ASSY - FIELD TRACKER, TILT (35) - HYDRAULIC SYSTEMS
8
21
13
14
23
5
17
25
2
18
4
19
9
22
16
3
14
1
25
12
9
23
7
10
19
20
11
18
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87424022

CYLINDER,Double Acting, 28.6mm Rod, 88.9mm Stroke

Field Tracker Tilt, 64 ID x 89 mm strk, Incl 2 - 23

1шт.

87424022R

REMAN-HYD CYLINDER

2577 AXIAL-FLOW COMBINE (NA) ASN HAJ0300001(10/06-)

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE

1шт.

3

NSS

NOT SOLD SEPARAT

JACK HEAD

1шт.

4

NSS

NOT SOLD SEPARAT

JACK PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

6

232-46112

LOCK NUT,3/4"-16, GC

1шт.

7

NSS

NOT SOLD SEPARAT

JACK HEAD

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW

4шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Pad

1шт.

11

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

1шт.

12

NSS

NOT SOLD SEPARAT

RAM FORK, Clevis Rod

1шт.

13

87358017

PIN

2шт.

14

87019495

SNAP RING,#98, Ext

4шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

2шт.

19

NSS

NOT SOLD SEPARAT

RING

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

23

NSS

NOT SOLD SEPARAT

RING

2шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

87424023

SEAL KIT

Incl 16 - 23

1шт.
