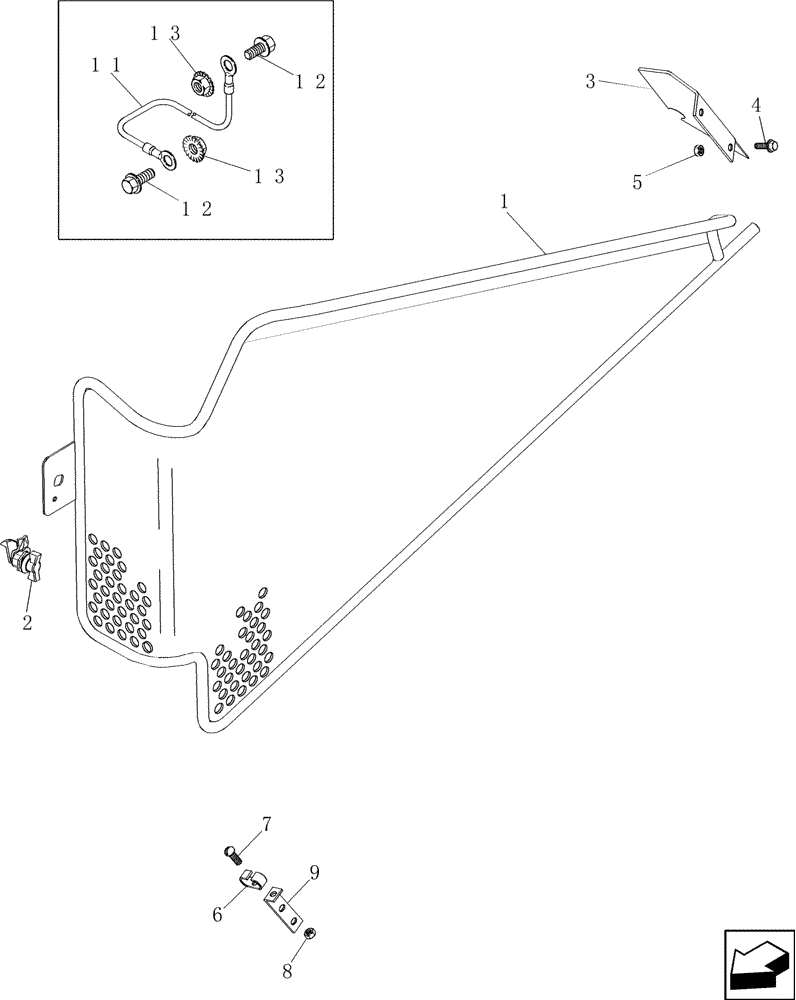

Запчасти Case IH 2577 (90.118.30[02]) - SHIELDS, INLET AND SEPARATOR - RIGHT HAND, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87528564

SHIELD

1шт.

2

182925A1

LOCK

1шт.

2

182926A1

LOCK

Australia Only

1шт.

3

142484A2

SUPPORT

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

185224A1

CLIP

1шт.

7

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

1шт.

8

824-1404

NUT,M4, Cl 5

1шт.

9

142485A3

BRACKET

Lower

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

11

132657A2

CABLE

1шт.

12

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

13

231-5344

FLANGE NUT,Flg, 1/4"-20

3шт.
