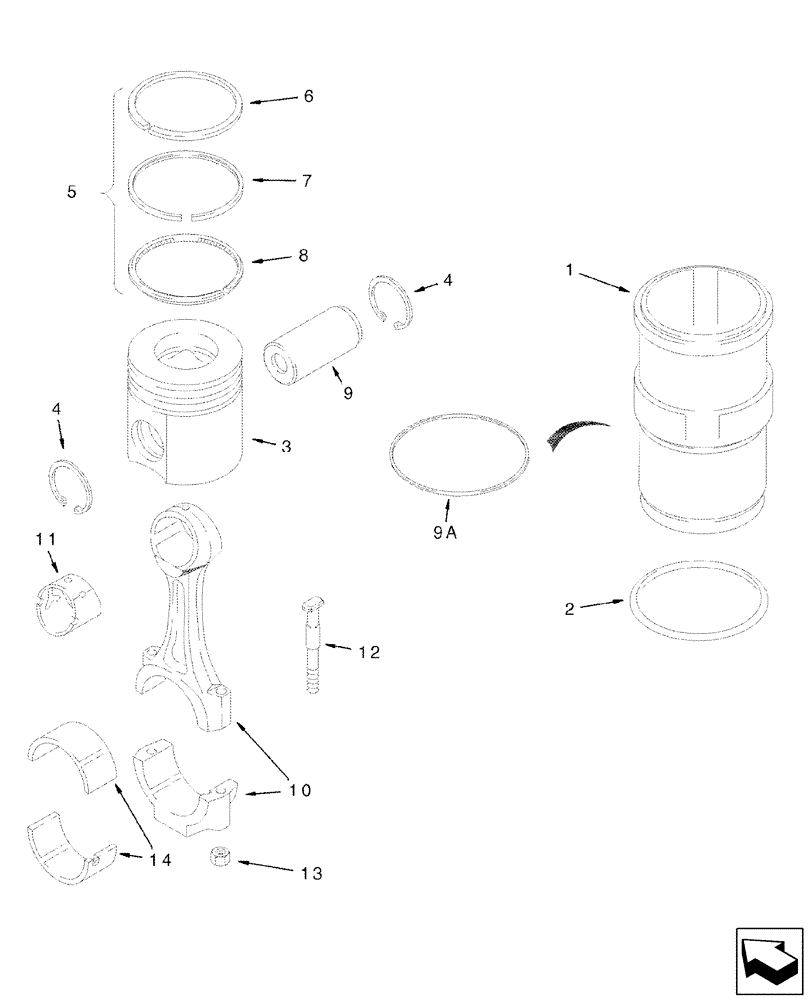

87343262
KIT
Piston and Sleeve, Standard, Incl Refs 1 - 8
6шт.
1
J948095
SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L
1шт.
2
J907177
SEAL,118mm ID x 122.32mm OD x 4mm Thk
1шт.
87378369
PISTON & RINGS KIT
Incl Refs 3 - 8
1шт.
3
NSS
NOT SOLD SEPARAT
PISTON
1шт.
4
100-21175
SNAP RING,1.75", Int, #175
2шт.
5
87343194
PISTON RINGS KIT
Incl Refs 6 - 8
1шт.
6
NSS
NOT SOLD SEPARAT
RING, TOP
1шт.
7
NSS
NOT SOLD SEPARAT
RING, MIDDLE
1шт.
8
NSS
NOT SOLD SEPARAT
RING, BOTTOM
1шт.
9
87342670
PISTON PIN
6шт.
9a
J924445
SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk
(.010")
1шт.
9a
J924446
SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk
(.015")
1шт.
9a
J924447
SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk
(.020")
1шт.
9a
J924448
SHIM,0.762mm Thk
(.030")
1шт.
9a
J924449
SHIM,1.000mm Thk
(.040")
1шт.
84145656
CONNECTING ROD
Incl Refs 10 - 13
6шт.
84145656R
REMAN-CONNECTING ROD
Reman for New P/N 84145656
6шт.
84145656C
CORE-ROD CONNECTING
Return Part Number, Core Connecting Rod
6шт.
84487529R
REMAN-CONNECTING ROD
2577 AXIAL-FLOW COMBINE ASN HAJ0300001 (10/06-), Reman for New P/N 84145656
6шт.
84487529C
CORE-ROD CONNECTING
Return Part Number
6шт.
10
NSS
NOT SOLD SEPARAT
ROD
1шт.
11
87343250
BUSHING,45.03mm ID x 49mm OD x 43mm L
1шт.
12
J928870
ROD
2шт.
13
J934864
NUT
2шт.
14
87443389
BEARING LINER
Kit, Standard
6шт.
14
87443529
BEARING LINER
Kit, Undersize 0.25 mm
6шт.
14
87443532
BEARING LINER
Kit, Undersize 0.50 mm
6шт.
14
87443533
BEARING LINER
Kit, Undersize 0.75 mm
6шт.
14
87443534
BEARING LINER
Kit, Undersize 1.00 mm
6шт.
