(55.404.04[01]) - LAMP ASSY - DRIVE AND FLOOD - HID (IF EQUIPPED) - BSN HAJ303987

Запчасти Case IH 2588 (55.404.04[01]) - LAMP ASSY - DRIVE AND FLOOD - HID (IF EQUIPPED) - BSN HAJ303987 (55) - ELECTRICAL SYSTEMS

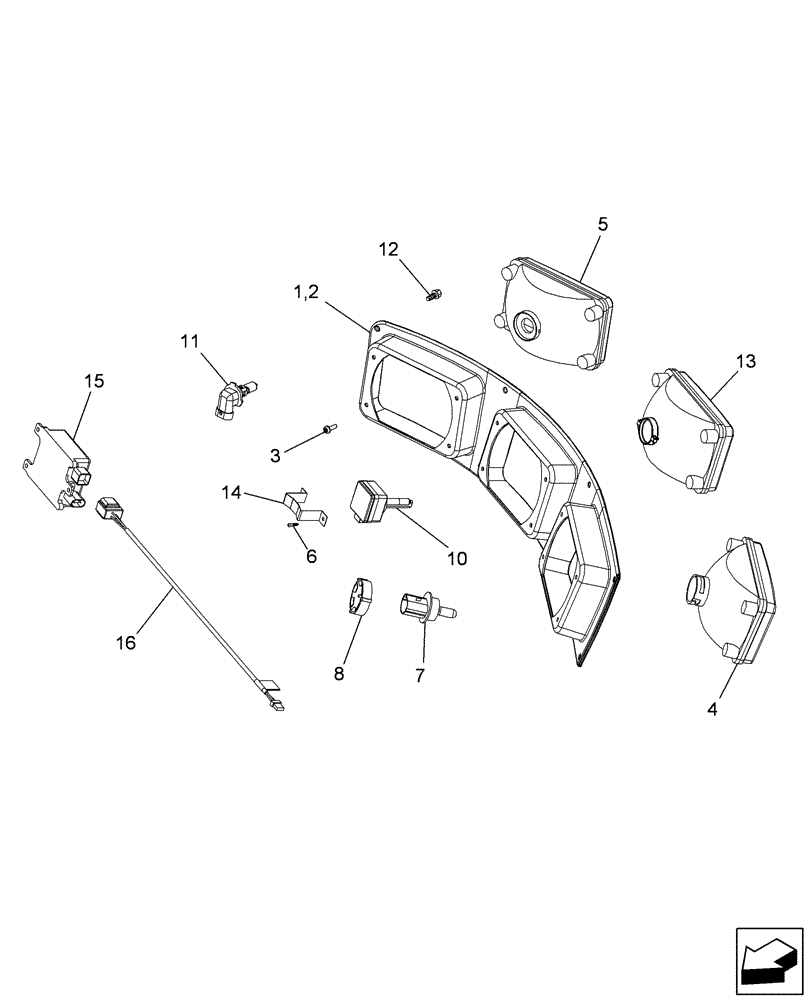

Схема запчастей Case IH 2588 - (55.404.04[01]) - LAMP ASSY - DRIVE AND FLOOD - HID (IF EQUIPPED) - BSN HAJ303987 (55) - ELECTRICAL SYSTEMS
12
16
15
5
14
4
11
7
1
13
3
2
10
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

339704A1

BEZEL

Lamps, RH, Fixed

1шт.

2

339705A1

BEZEL

Lamps, LH, Fixed (Not Shown)

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

24шт.

4

353656A1

HEADLIGHT

Trapezoidal

2шт.

5

87367623

LIGHT

Flood

2шт.

6

87673230

SCREW,#6 x 5/16"

4шт.

7

388872A1

BULB

65W/45W Long Life

2шт.

8

137825A1

RETAINER COLLAR

2шт.

10

87282633

BULB

2шт.

11

87106291

BULB

9005 - 12V

2шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

16шт.

13

87383573

LIGHT ASSY.

Flood

2шт.

14

87673126

SPRING CLIP

2шт.

15

87106306

BALLAST

2шт.

15

87475204R

REMAN ELECT CONTROL

2588 CASE IH AXIAL-FLOW COMBINE (NA) ASN HAJ300001, BSN HAJ303987 (10/06-), Reman for New PN 87106306

2шт.

15

87475204C

CORE-ELECTRONIC CONT

Return Number

2шт.

16

87108021

WIRE HARNESS

2шт.
