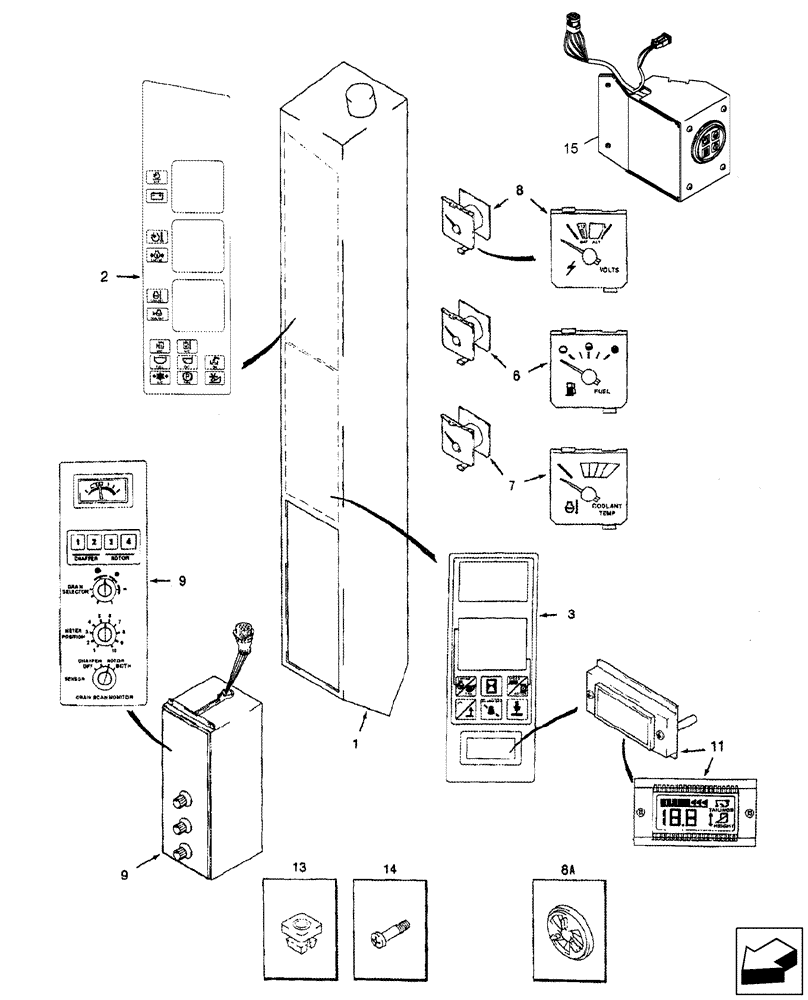

257612A2
INSTRUMENT PANEL
Incl Refs 1 - 8B, 11
1шт.
257612A2R
REMAN-INSTR CLUSTER
2588 ASN HAJ300001 (10/06-)
1шт.
257612A2C
CORE-MODULE
Return Number
1шт.
84221313R
REMAN-INSTR CLUSTER
2588 ASN HAJ300001 (10/06-), Reman for New PN 257612A2
1шт.
84221313C
CORE-CLUSTER, INSTR
Return Number
1шт.
257612A1C
CORE-MODULE
CORE-MODUL Return Number, MODULE - for N.A. Only
1шт.
1
NSS
NOT SOLD SEPARAT
PANEL
1шт.
2
238210A1
DECAL
Gauge and Warning
1шт.
3
123716A1
DECAL
Instrument Panel
1шт.
4
A48888
BULB
Not Shown
1шт.
5
121615A1
LAMP SOCKET
Incl Bulb (Not Shown)
6шт.
6
142825A1
FUEL GAUGE
1шт.
7
142824A1
GAUGE
Coolant Temperature
1шт.
8
142828A1
VOLTMETER
1шт.
8a
195359A1
SHUTTER
Audible Warning Alarm
1шт.
8b
1546441C1
BUZZER
Audible Warning Alarm (Not Shown)
1шт.
9
110862A1
CONTROL MONITOR
Grain Scan, Incl Ref 10
1шт.
10
A48888
BULB
Not Shown
1шт.
11
123715A1
DISPLAY
Height, Incl Ref 12
1шт.
12
121615A1
LAMP SOCKET
Incl Bulb (Not Shown)
1шт.
13
R53000
GROMMET
2шт.
14
260-13524
SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"
2шт.
15
87357992
MODULE
Engine Warning Lights
1шт.
16
200720002
KNOB
Control Monitor (Not Shown)
3шт.
