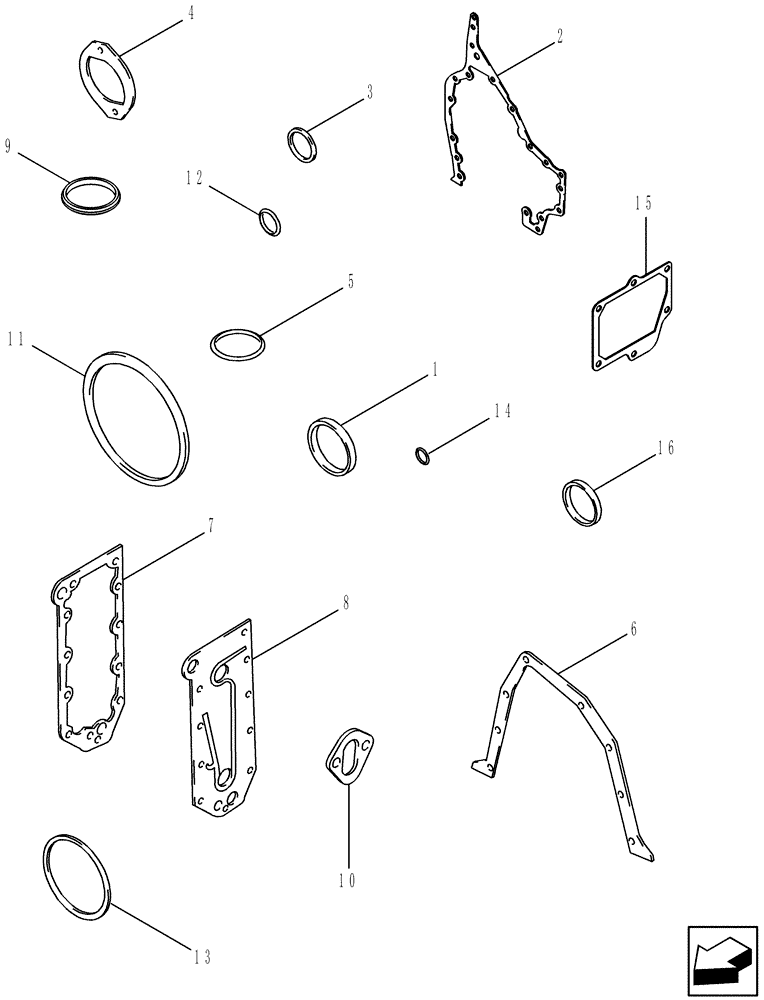

87416435
GASKET KIT
Cylinder Block, Tier 3 Engines, Incl 1 - 16
1шт.
1
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
Front Cover
1шт.
2
J944293
GASKET,1.01mm Thk
Gear Housing, Shown
1шт.
3
J915772
SEAL,Square, 1.68mm Thk x 29.87mm ID, -25
SEALRING Timing Pin Housing
1шт.
4
J938655
GASKET,1.27mm Thk
Hydraulic Pump
1шт.
5
238-5244
O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro
1шт.
6
87447962
GASKET,0.8mm Thk
Rear Cover
1шт.
7
J918174
GASKET,0.71mm Thk
Oil Cooler
1шт.
8
J4063496
GASKET,0.8mm Thk
Oil Cooler Cover
1шт.
9
J924605
SEAL
Injection Pump to Gear Housing
1шт.
10
J939258
GASKET,1.21mm Thk
Lift Pump
1шт.
11
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
SEALRING Rear Cover
1шт.
12
238-5212
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
Barring Hole Plug
1шт.
13
J907177
SEAL,118mm ID x 122.32mm OD x 4mm Thk
, Serial Range: Sleeve-Block
6шт.
14
J913994
O-RING
Timing Pin
1шт.
15
87436828
GASKET
Breather, Shown
1шт.
16
J926722
SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108
Lube Oil Supply
1шт.
17
J900830
O-RING
Seal (Not Shown)
1шт.
