(55.426.AH[01]) - WIRE HARNESS, GRAIN TANK COVER, BSN Y9G002283

Запчасти Case IH 5088 (55.426.AH[01]) - WIRE HARNESS, GRAIN TANK COVER, BSN Y9G002283 (55) - ELECTRICAL SYSTEMS

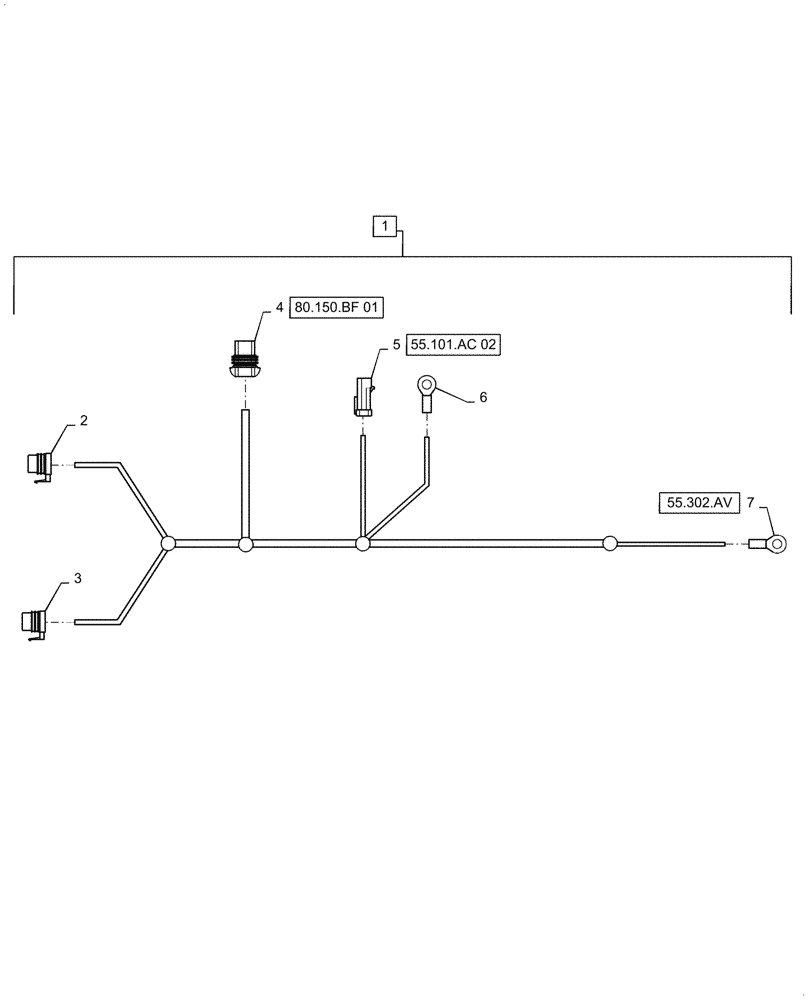

Схема запчастей Case IH 5088 - (55.426.AH[01]) - WIRE HARNESS, GRAIN TANK COVER, BSN Y9G002283 (55) - ELECTRICAL SYSTEMS
55.101.ac 02
6
2
4
1
7
3
5
55.302.av
80.150.bf 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87687016

WIRE HARNESS

Grain Tank Covers, Incl 2 - 7

1шт.

2

86508603

RELAY,12V

Relay B, C-325

1шт.

3

86508603

RELAY,12V

Relay A, C-324

1шт.

4

87679438

WIRE CONNECTOR,Female

Covers Motor, C-302

1шт.

5

87382907

WIRE CONNECTOR,Male

Right Main Harness, C-195

1шт.

5

84395363

TERMINAL

Right Main Harness, C-195

2шт.

6

84397999

TERMINAL

Ground

1шт.

7

84474041

TERMINAL

Battery B+

1шт.
