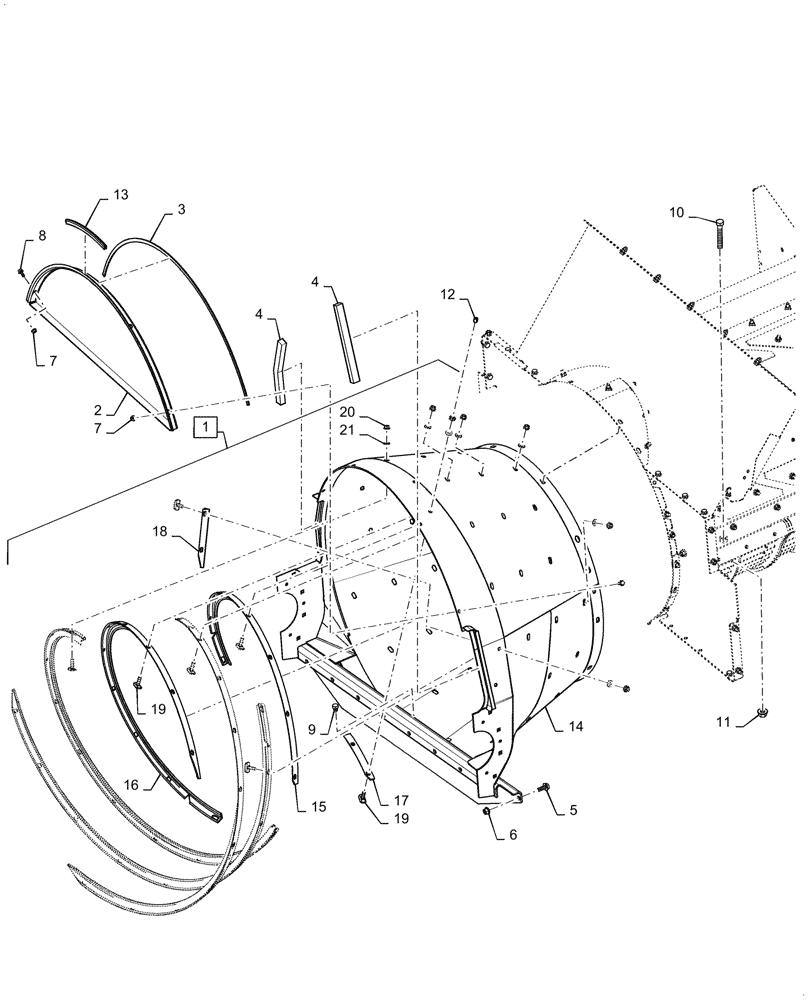

Запчасти Case IH 5088 (66.101.AP[01]) - VAR - 722888 - CONE, FEEDER (66) - THRESHING

1

47512044

CONE

Rotor Transition, Heat Treated, Incl 14 - 21

1шт.

2

291127A1

GUARD

Rotor Front, Extended Wear

1шт.

3

419957A1

SEAL

Rear Section

1шт.

4

233482A1

DOOR SEAL,380mm L

Transition Cone Sides

2шт.

5

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

9

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1шт.

10

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

2шт.

11

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

12

9835349

CAP

14шт.

13

87029779

SEAL

Edge Trim

1шт.

14

47512072

CONE

Rotor Transition, Heat Treated

1шт.

15

418655A2

STIFFENER

Vane, Cone, Short

1шт.

16

418654A2

VANE

Cone, Long

4шт.

17

347913A1

VANE

Cone Extension

1шт.

18

347918A1

STIFFENER

Vane, Cone Pocket

1шт.

19

87106338

BOLT

M10 x 30mm

47шт.

20

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

47шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

47шт.
