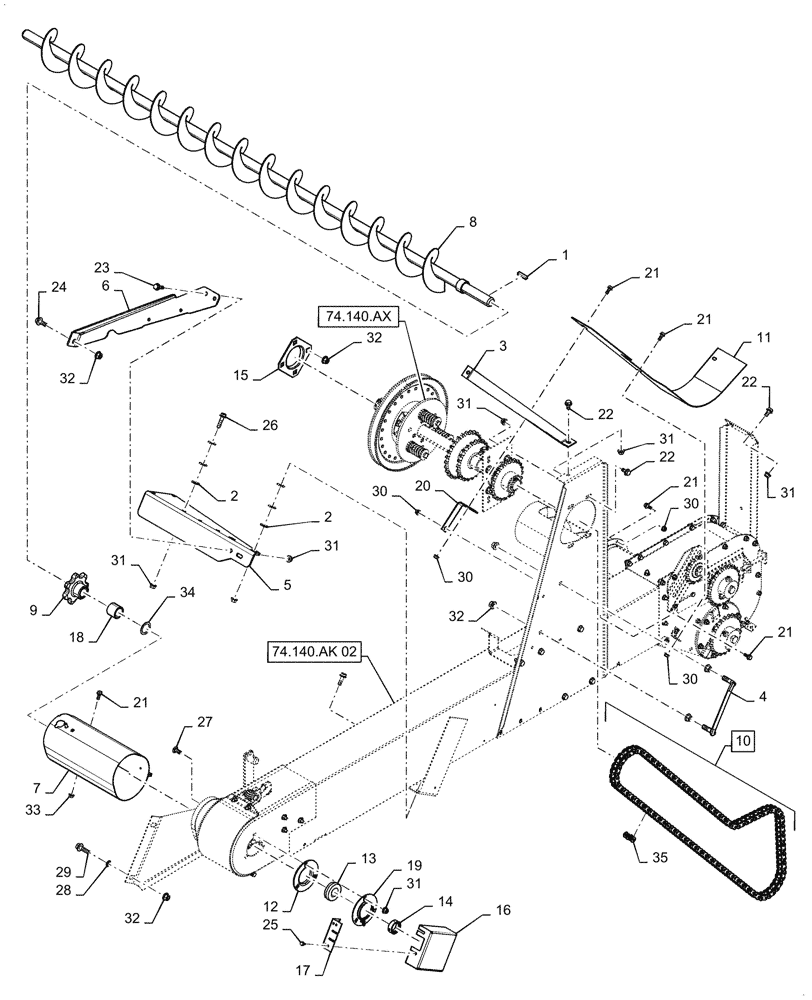

Запчасти Case IH 5088 (74.140.AK[01]) - TAILINGS ELEVATOR (74) - CLEANING

1

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

2

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

3

87620385

PLATE ASSY.

Outer Jackshaft Support

1шт.

4

87711329

HANDLE

Elevator Step

1шт.

5

87635253

BRACKET

Upper Support

1шт.

6

87704825

BRACKET

Lower Support

1шт.

7

87689184

TUBE

Trough Extension

1шт.

8

144028A2

AUGER

Tailings

1шт.

9

87740180

SPROCKET,7T

1шт.

10

84164207

CHAIN (AG),60H, 134 Links x 19.05mm = 2552.7mm

Drive, Incl 35, Start Serial: Y9G001954

1шт.

10

1302671C92

CHAIN,#50, 156 Links x 15.88mm = 2476.5mm

Drive, Serial Range: -Y9G001953

1шт.

11

87728575

SHEET

Shield Strip

1шт.

12

87397331

FLANGE

Bearing, 62mm

1шт.

13

156011C92

BALL BEARING

Auger

1шт.

14

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

1шт.

15

86974037

FLANGE

80mm

1шт.

16

87740295

COVER

Sensor, RH

1шт.

17

87740297

COVER

Shaft Speed Sensor

1шт.

18

144038A1

SPACER

Sprocket

1шт.

19

87430514

FLANGE

Bearing

1шт.

20

87757141

PLATE

Shield Support

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

13шт.

22

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

8шт.

23

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

24

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

25

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

2шт.

26

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

2шт.

27

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

28

87698855

PUSH-ON NUT

Retainer

2шт.

29

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

31

86050279

FLANGE NUT,M10 x 1.5, Cl 10

19шт.

32

86512497

FLANGE NUT,M12 x 1.75, Cl 10

11шт.

33

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

34

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1шт.

35

84173631

LINK,19.05mm Pitch

Connecting

1шт.
