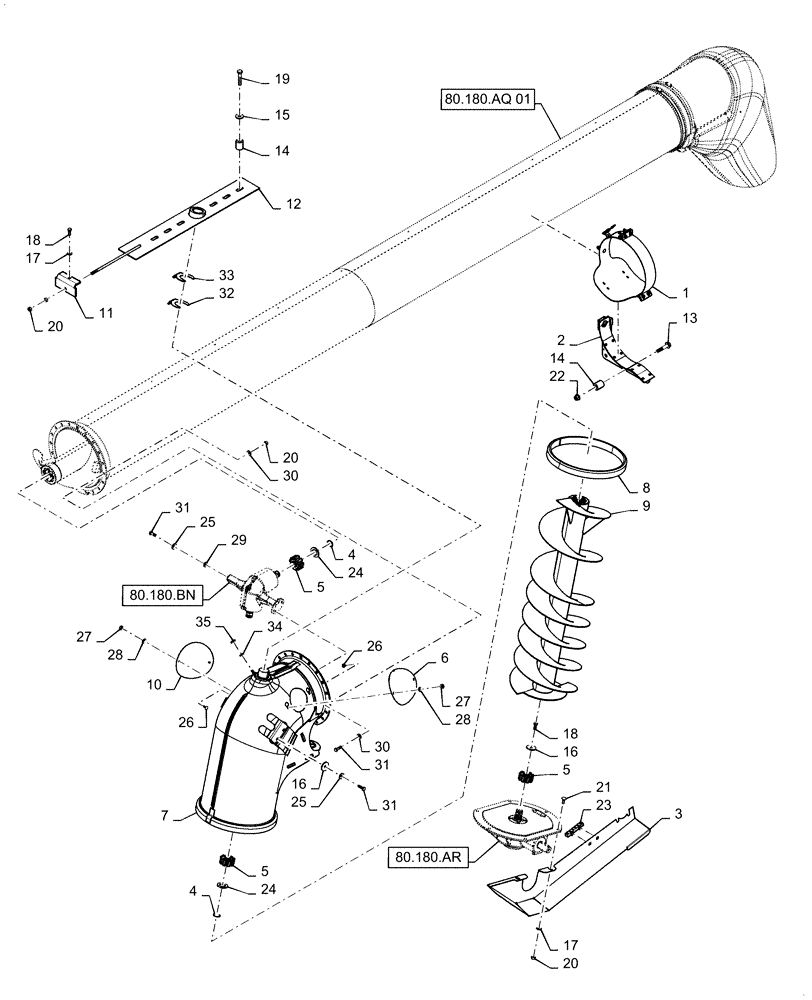

Запчасти Case IH 5088 (80.180.AP[01]) - VAR - 72273, 72248 - UNLOADING TUBE ASSY, 21 FOOT (80) - CROP STORAGE/UNLOADING

1

84248894

SECURING BAND

Tube

1шт.

2

87595755

SUPPORT

Unloader Tube

1шт.

3

87476437

GUARD

Unloader Chain Drive

1шт.

4

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

5

87011705

HUB,21T

3шт.

6

87552534

COVER

Auger Gearbox

1шт.

7

84126361

ELBOW,Unloading Auger

1шт.

8

86558526

BUSHING,408mm ID x 440mm OD x 40mm OAL

1шт.

9

87756536

AUGER

Extended Wear, VAR - 72273

1шт.

9

84447940

AUGER

Standard, VAR - 72248

1шт.

10

87552532

COVER

Auger Gearbox

1шт.

11

84072832

BRACKET

Angle

1шт.

12

86998599

PLATE

Elbow

1шт.

13

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

2шт.

14

87284863

SPACER,38mm OD x 46mm OAL

8шт.

15

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

16

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

3шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

18

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

19

86577946

BOLT,Hex, M16 x 80mm x 10.9

6шт.

20

9706685

NUT,M12 x 1.75, Cl 8

27шт.

21

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

22

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

23

3102155R1

HOLDER

Shear Bolt

1шт.

24

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

2шт.

25

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

27

9706690

NUT,M8 x 1.25, Cl 8

4шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

29

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

30

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

31

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

22шт.

32

87627724

SHIM,1.7mm Thk

1шт.

33

87620925

SHIM,3.2mm Thk

1шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

35

100016

NUT,M10 x 1.5, Cl 8

1шт.
