(88.100.55[03]) - DIA KIT, CAB WORK LIGHT, HID DELUXE

Запчасти Case IH 5088 (88.100.55[03]) - DIA KIT, CAB WORK LIGHT, HID DELUXE (88) - ACCESSORIES

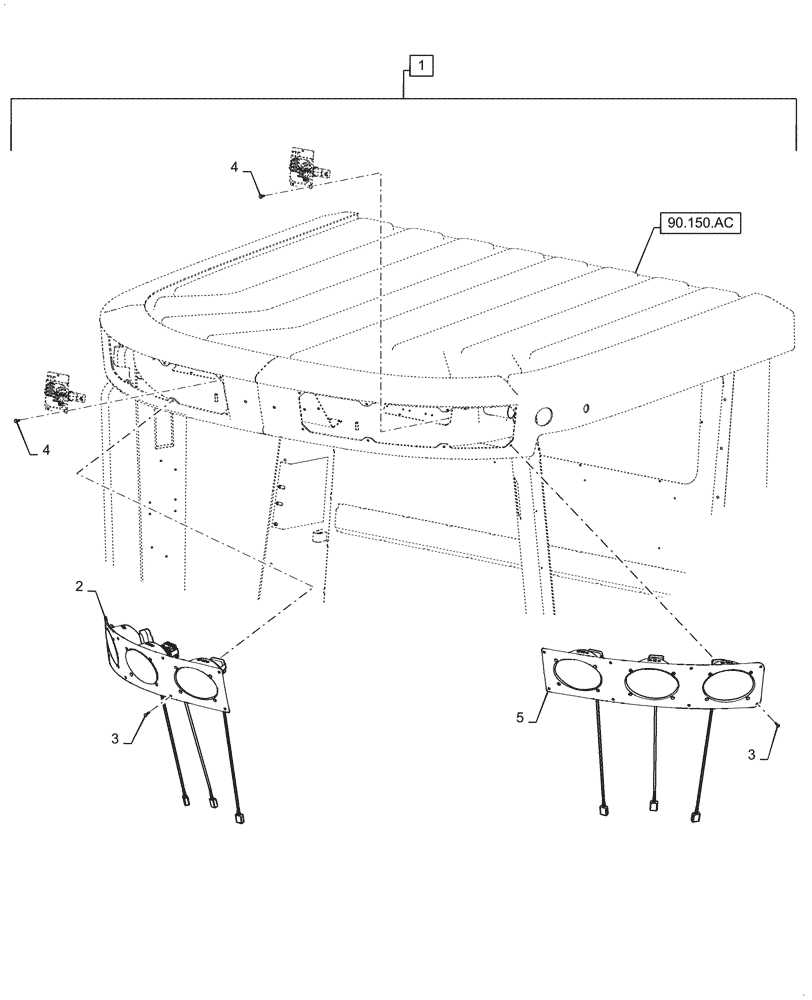

Схема запчастей Case IH 5088 - (88.100.55[03]) - DIA KIT, CAB WORK LIGHT, HID DELUXE (88) - ACCESSORIES
90.150.ac
2
1
3
3
4
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87737628

DIA KIT, HARVESTER

Cab Work Light, HID Deluxe, Incl 2 - 5

1шт.

2

87693085

LIGHT ASSY.

Cab Roof, Deluxe HID, RH

1шт.

3

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

16шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

18шт.

5

87693086

LIGHT ASSY.

Cab Roof, Deluxe HID, LH

1шт.
