(35.200.17) - PARKING BRAKE - VALVE

Запчасти Case IH 5130 (35.200.17) - PARKING BRAKE - VALVE (35) - HYDRAULIC SYSTEMS

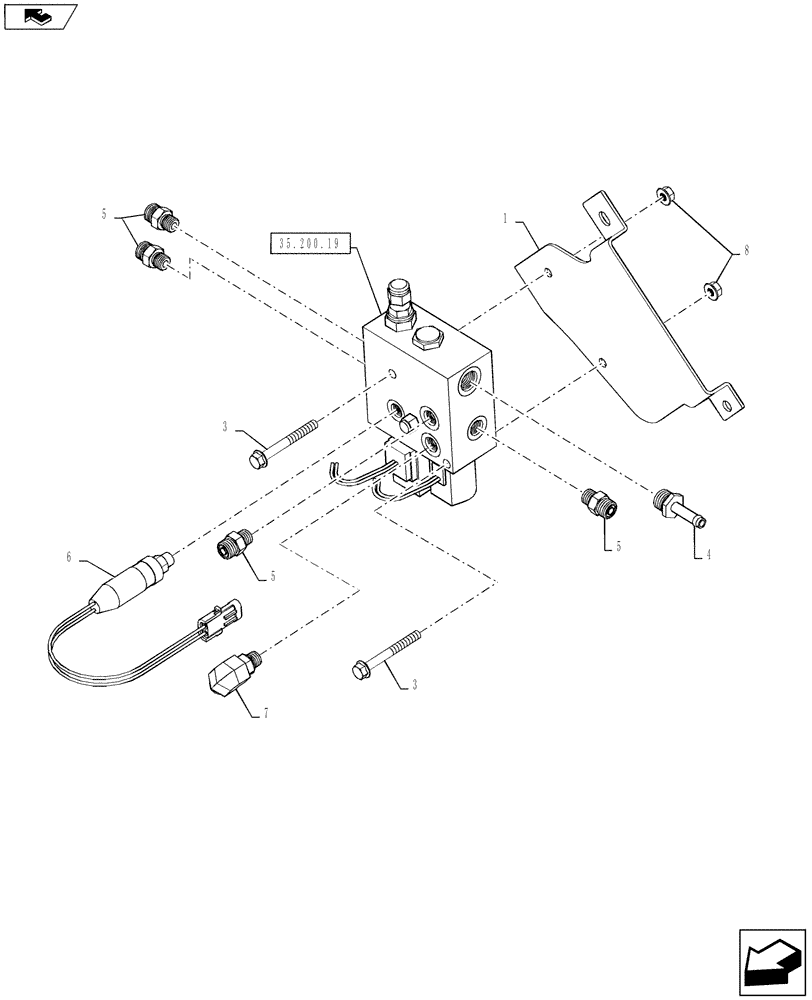

Схема запчастей Case IH 5130 - (35.200.17) - PARKING BRAKE - VALVE (35) - HYDRAULIC SYSTEMS
8
6
home
5
1
3
7
5
5
4
35.200.19
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87678379

SUPPORT

Brake Valve

1шт.

2

129010A4

CONTROL VALVE

Feeder and Park Brake

1шт.

3

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

4

217-386

FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB

1шт.

5

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

6

125829A1

PRESSURE SWITCH

Pressure

1шт.

7

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
