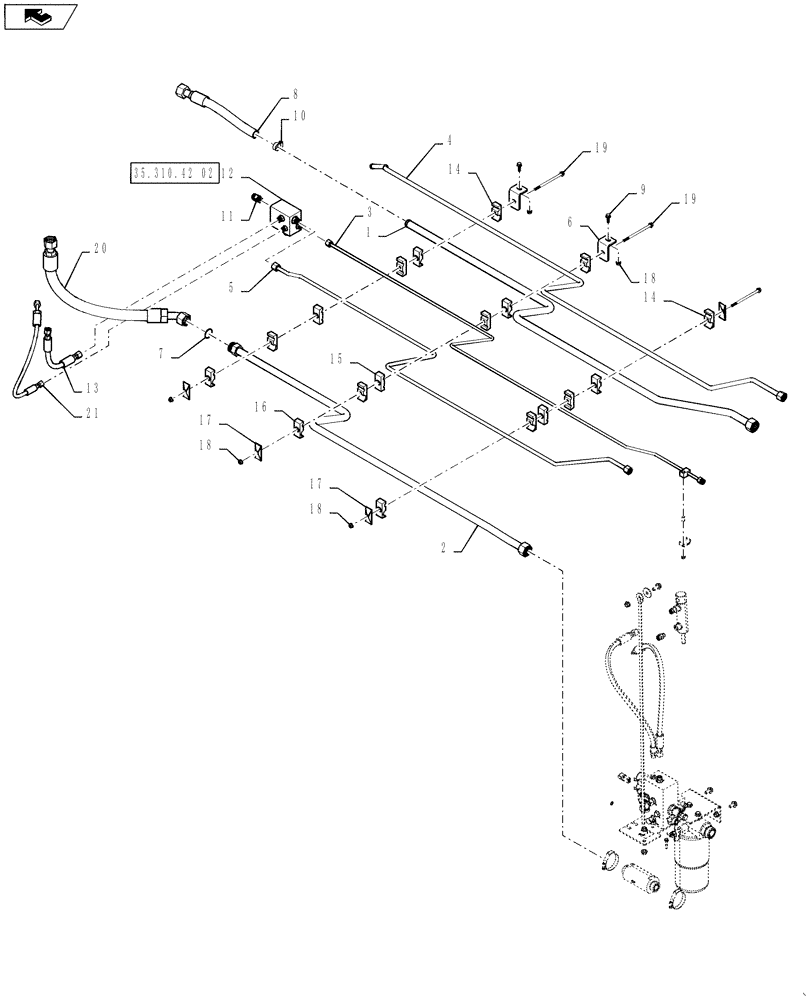

1
84282060
HYD TUBE
Hyd. System Return
1шт.
2
84156258
HYD TUBE
Hyd. Main Supply
1шт.
3
84260466
HYD TUBE
Hyd Pump Signal
1шт.
4
84156271
HYD TUBE
Hyd Low Pressure Return
1шт.
5
84260467
HYD TUBE
Hyd Regulated Pressure
1шт.
6
84514679
SUPPORT
2шт.
7
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
1шт.
8
84282059
HOSE ASSY.
Valve Stack Return
1шт.
9
87698833
BOLT,M8 x 33.1mm, Cl 10.9
2шт.
10
214-1424
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
1шт.
11
84194177
CHECK VALVE
1шт.
12
NSS
NOT SOLD SEPARAT
1шт.
13
84347770
HOSE ASSY.
Pilot Pressure
1шт.
14
87000138
CLAMP
3шт.
15
87105732
CLAMP
3шт.
16
87000141
CLAMP
3шт.
17
87000230
PLATE
4шт.
18
86507066
FLANGE NUT,M8 x 1.25, Cl 10
5шт.
19
87670763
BOLT,Hex, M8 x 140mm, Cl 10.9
3шт.
20
84193638
HOSE ASSY.
Valve Stack Supply
1шт.
21
84156309
HOSE ASSY.
Signal
1шт.
