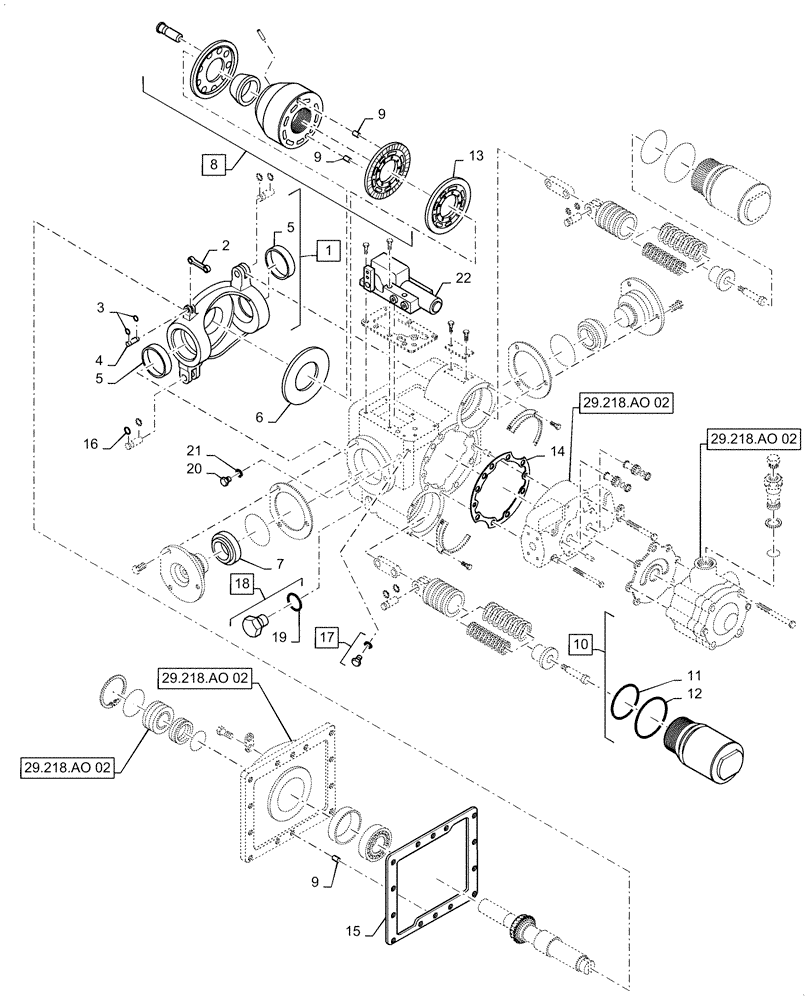

Запчасти Case IH 6088 (29.218.AO[03]) - HYDROSTATIC PUMP ASSY (125 CC/REV) (29) - HYDROSTATIC DRIVE

1

107583A1

HOUSING

Trunnion, Incl 2 - 5

1шт.

2

114324A1

LINK

Control

1шт.

3

100-1125

SNAP RING,#25, Ext

2шт.

4

140765C1

PIN

Control Valve

1шт.

5

376463C1

BEARING CUP

Trunnion

2шт.

6

107582A1

LARGE PLATE

Thrust

1шт.

7

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

2шт.

8

107588A1

PACKAGE

Rotating, Incl 9

1шт.

9

37-1510

DOWEL,5/16" x 5/8"

8шт.

10

142407C2

KIT

Servo Sleeve, Incl 11 - 12

2шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

12

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

13

107587A1

LARGE PLATE

Valve

1шт.

14

107584A1

GASKET

End Cover

1шт.

15

107589A1

GASKET

Mounting Flange

1шт.

16

100-1175

SNAP RING,#75, Ext

4шт.

17

9672438

PLUG,7/16" - 20 ORB

1шт.

18

76349

PLUG,9/16" - 18 ORB

Incl 19

2шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

86512512

PLUG,7/8" - 14 ORB

1шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

87479111

CONTROL VALVE

Complete

1шт.
