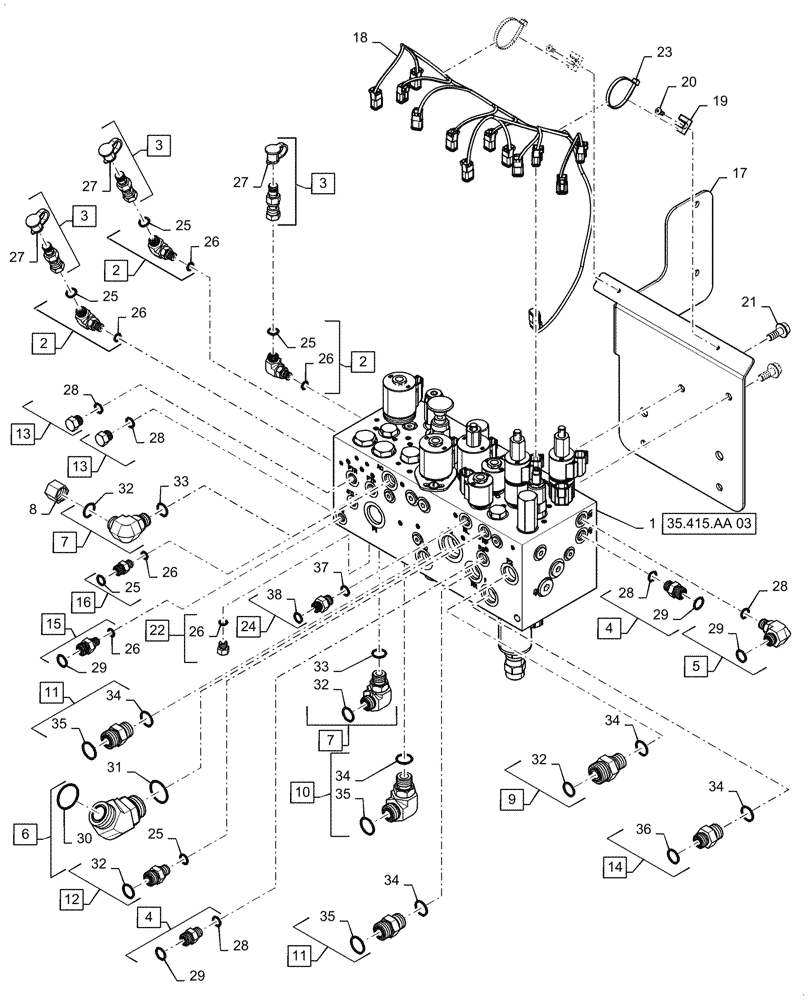

Запчасти Case IH 6088 (35.415.AA[01]) - VAR - 425079, 425080, 425084, 425085 - FEEDER VALVE ASSY, STANDARD (35) - HYDRAULIC SYSTEMS

1

87740274

VALVE

Feeder, Standard

1шт.

2

87681199

90 ELBOW

Incl 25, 26

3шт.

3

190117A1

COUPLING

Diagnostic, Incl 27

3шт.

4

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 28, 29

2шт.

5

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 28, 29

1шт.

6

201-318

ELBOW,45 Degree, 1 7/16"-12 x 1 5/16"-12. Adj, ORFS

Incl 30, 31

1шт.

7

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Incl 32, 33

2шт.

8

87331951

ORIFICE

Cap

1шт.

9

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

Incl 32, 34

1шт.

10

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Incl 34, 35

1шт.

11

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 34, 35

2шт.

12

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

Icnl 25, 32

1шт.

13

76349

PLUG,9/16" - 18 ORB

Incl 28

2шт.

14

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

Incl 34, 36

1шт.

15

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

Incl 26, 29

1шт.

16

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 25, 26

1шт.

17

87756972

BRACKET

Valve Support

1шт.

18

87695892

WIRE HARNESS

Valve Block

1шт.

19

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

20

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

22

9672438

PLUG,7/16" - 20 ORB

Incl 26

1шт.

23

86566989

CABLE TIE,208mm L

2шт.

24

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 37, 38

1шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

26

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

6шт.

27

H434163

DUST CAP

Diagnostic Coupler

3шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

29

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

30

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

35

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

36

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

37

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
