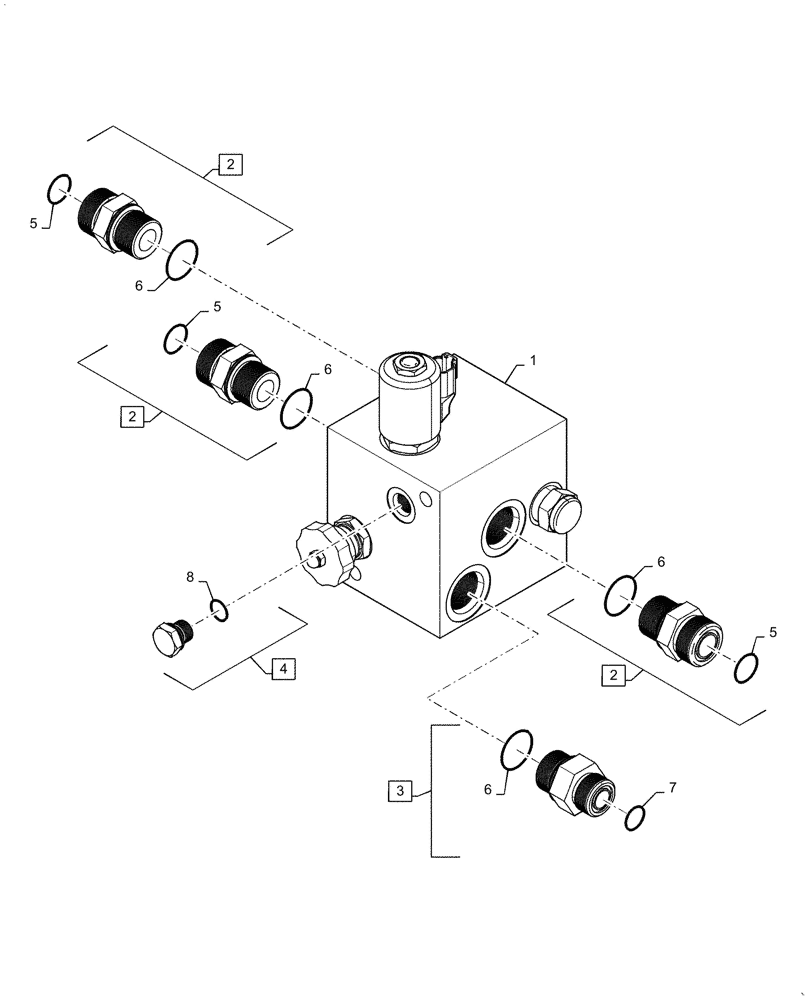

Запчасти Case IH 6088 (35.796.AF) - CHAFF SPREADER HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS

1

87688779

VALVE

Hydraulic, Spreader

1шт.

2

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 5, 6

3шт.

3

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 6, 7

1шт.

4

220064A1

PLUG,M14 x 1.5, ORB

Incl 8

1шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
