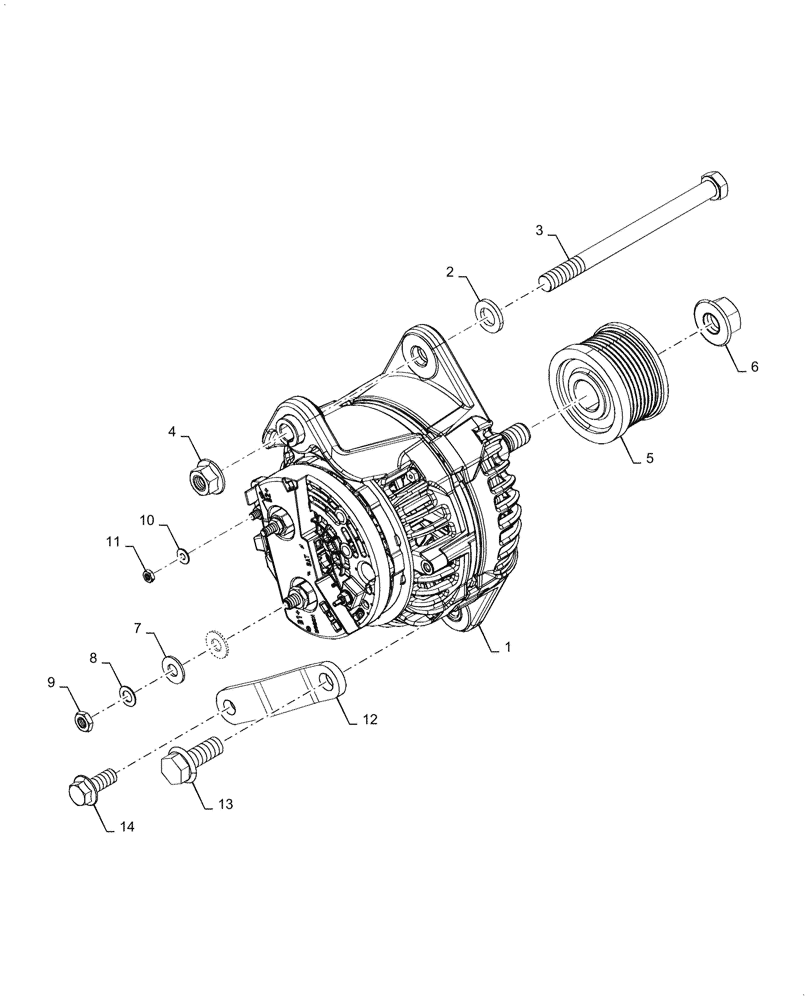

Запчасти Case IH 6088 (55.301.AD[02]) - ALTERNATOR & MOUNTING PARTS, ASN Y9G001764 (55) - ELECTRICAL SYSTEMS

1

87715398

ALTERNATOR,12V, 200A

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

4

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

1шт.

5

87740931

PULLEY,71mm OD

Alternator

1шт.

6

87742499

FLANGE NUT

M16

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

12601379

WAVE WASHER,Wave, M8.4

1шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

10

12581379

WAVE WASHER,4.55mm ID x 11mm OD x 0.8mm Thk

M5

1шт.

11

84139322

NUT

Jam, M5

1шт.

12

87362253

ARM

Alternator Brace

1шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

14

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

1шт.
