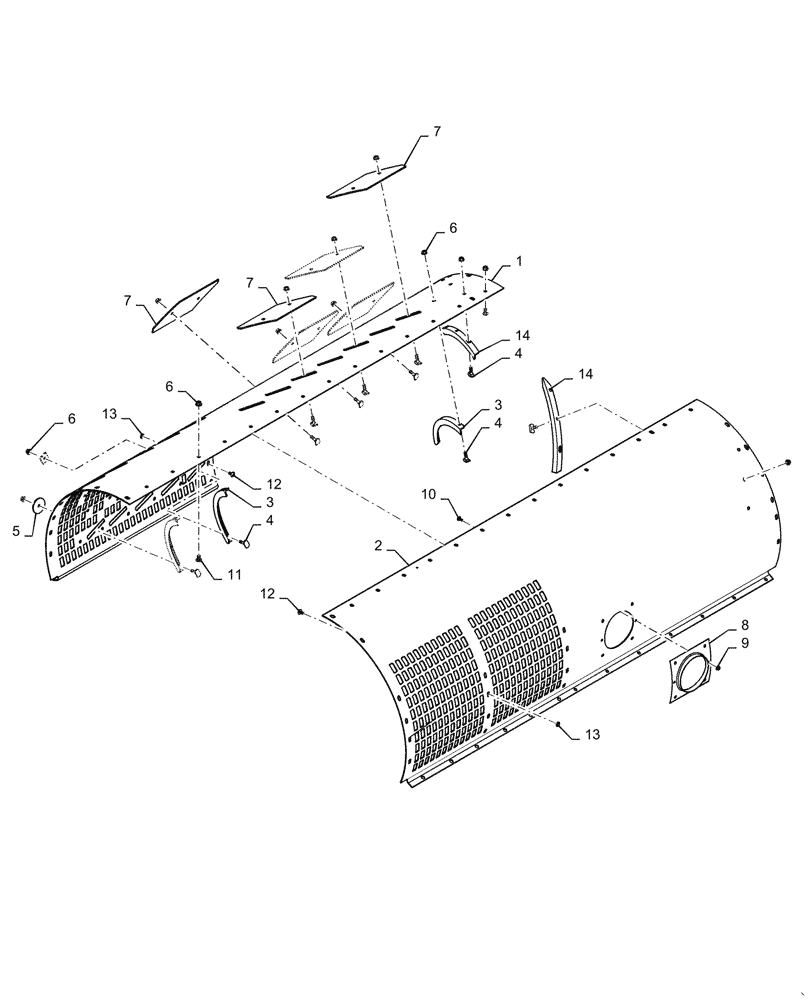

Запчасти Case IH 6088 (72.420.AM[02]) - SEPARATOR ROTOR CAGE (72) - SEPARATION

1

1318729C5

CAGE

Rotor, Threshing, LH

1шт.

2

1321661C3

CAGE

Rotor, Threshing, RH

1шт.

3

347917A1

VANE

Vane

13шт.

4

87106338

BOLT

Tee, M10 x 30mm OAL, Cl 8.8

46шт.

5

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

11mm ID x 40mm OD x 4mm W

12шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

59шт.

7

1318581C1

PLATE

Vane Tie

6шт.

8

186700C1

COVER

Tailings Delivery Tube

1шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

10

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

6шт.

11

87487071

SERRATED SCREW,M10 x 1.5 x 25mm

Truss Head Slotted

14шт.

12

87487056

SERRATED SCREW,M10 x 1.5 x 20mm, Cl 10.9

Truss Head Slotted, Locking Thread

11шт.

13

87698854

NUT,M10

Push On

12шт.

14

411518A2

VANE

Vane Extension, Ext. Wear

3шт.
