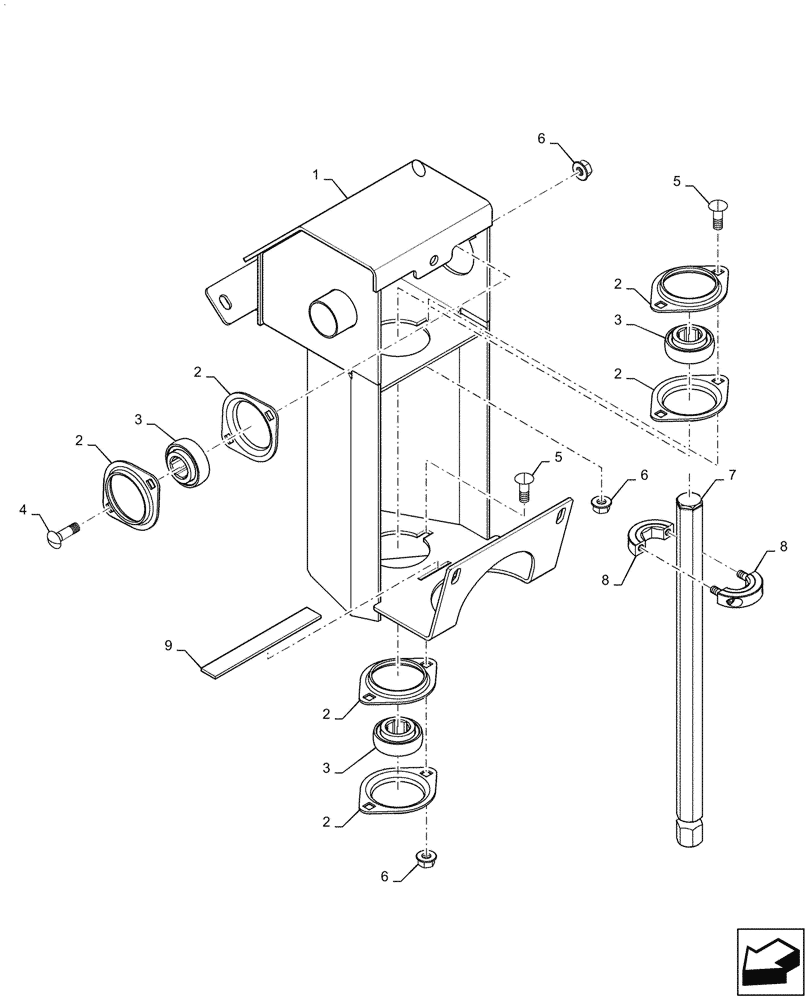

Запчасти Case IH 6088 (73.335.AC[03]) - RH STRAW SPREADER DRIVE ASSY (73) - RESIDUE HANDLING

1

87649415

BRACKET

Spreader Drive, RH, Dark Gray

1шт.

2

50591

FLANGE,52mm

Housing

6шт.

3

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

3шт.

4

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

5

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

4шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

7

84426633

SHAFT

Straw Spreader

1шт.

8

84426645

CLAMP,Hex Shaft, 22.23mm ID

Hex Shaft

1шт.

9

278842A1

SEAL

Foam Tape

1шт.
