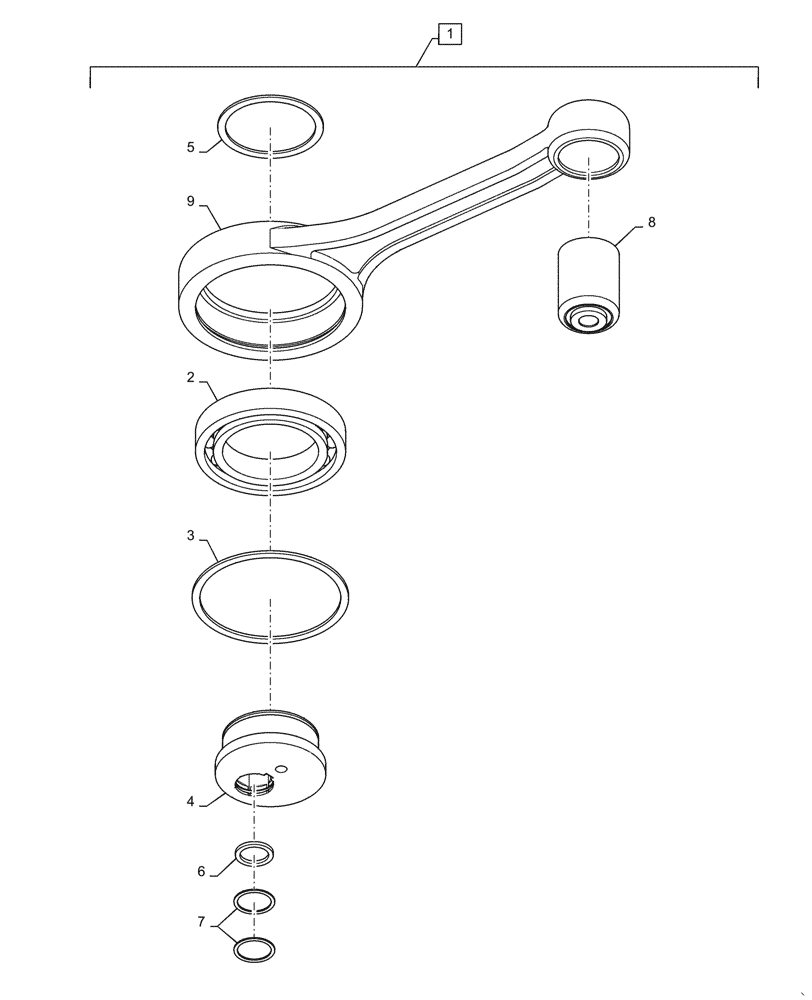

Запчасти Case IH 6088 (74.101.BF[02]) - CLEANING SYSTEM PITMAN ARM, LH (74) - CLEANING

1

87672050

ARM ASSY.

LH, Incl 2 - 9

1шт.

2

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

1шт.

3

1322624C1

SNAP RING

5.125" Internal

1шт.

4

1322573C1

CAM

Shaker Shaft

1шт.

5

1979190C1

RETAINER

2.661" External

1шт.

6

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

31.65mm OD x 27mm ID x 3mm L

1шт.

7

1322623C1

RETAINER

1.202" Internal

2шт.

8

87376924

BUSHING,16mm ID x 50.8mm OD x 76.2mm L

50.8mm OD x 16mm ID x 76.2mm L

1шт.

9

1979369C2

ARM

LH Pitman

1шт.
